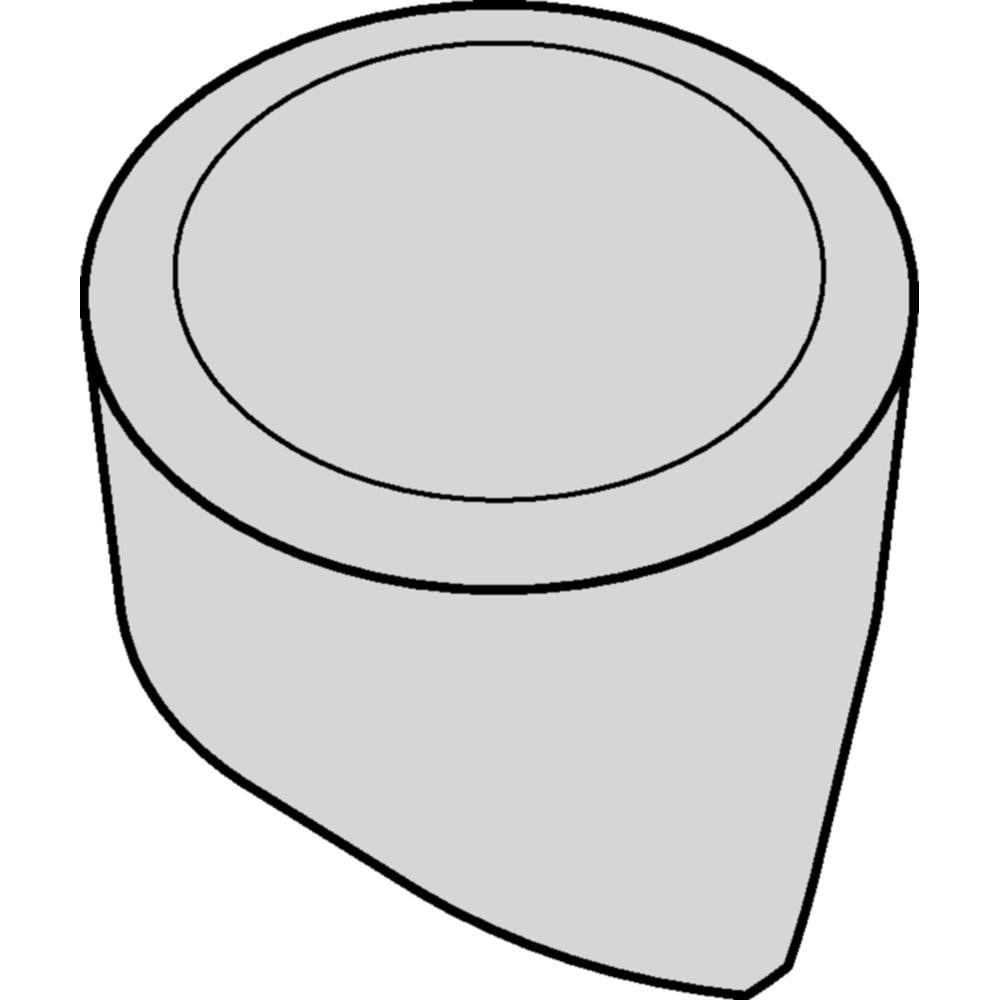

Brand: Widia / Part #: 3869747
Item #: 93311652
Brand: Widia
Model #: 3869747
Product Specifications
| Insert Style | RCGV |
| Insert Shape Code | R |
| Insert Size Code | 35 |
| Insert Shape | Round |
| Coating/Finish | Uncoated |
| Manufacturer Grade | CW3020 |
| Corner Radius (Decimal Inch) | 0.1875 |
| Insert Material | Ceramic |
| Maximum Depth of Cut (mm) | 4.77 |
| Maximum Depth of Cut (Decimal Inch) | 0.1878 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.3126 |
| Clearance Code | C |
| Tolerance Code | G |
| Relief Angle | 7.000 |
| Series | RCGX |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.3750 |
| Number Of Cutting Edges | 1 |
| Secondary Workpiece Material | Super-alloys & Titanium |
| Secondary Workpiece Material Code | S |
| Ansi Code | RCGV35T0420 |
| Iso Code | RCGX090700T01020 |
| Manufacturers Catalog Number | RCGV35T0420 |
| Cutting Direction | Neutral |
| Coating Classification | Uncoated |
| Chip Breaker | None |
| Cutting Edge Style | Chamfered |
| Style | RCGX |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | Yes |
| Multi-Use Application | External Turning; Internal Turning |
