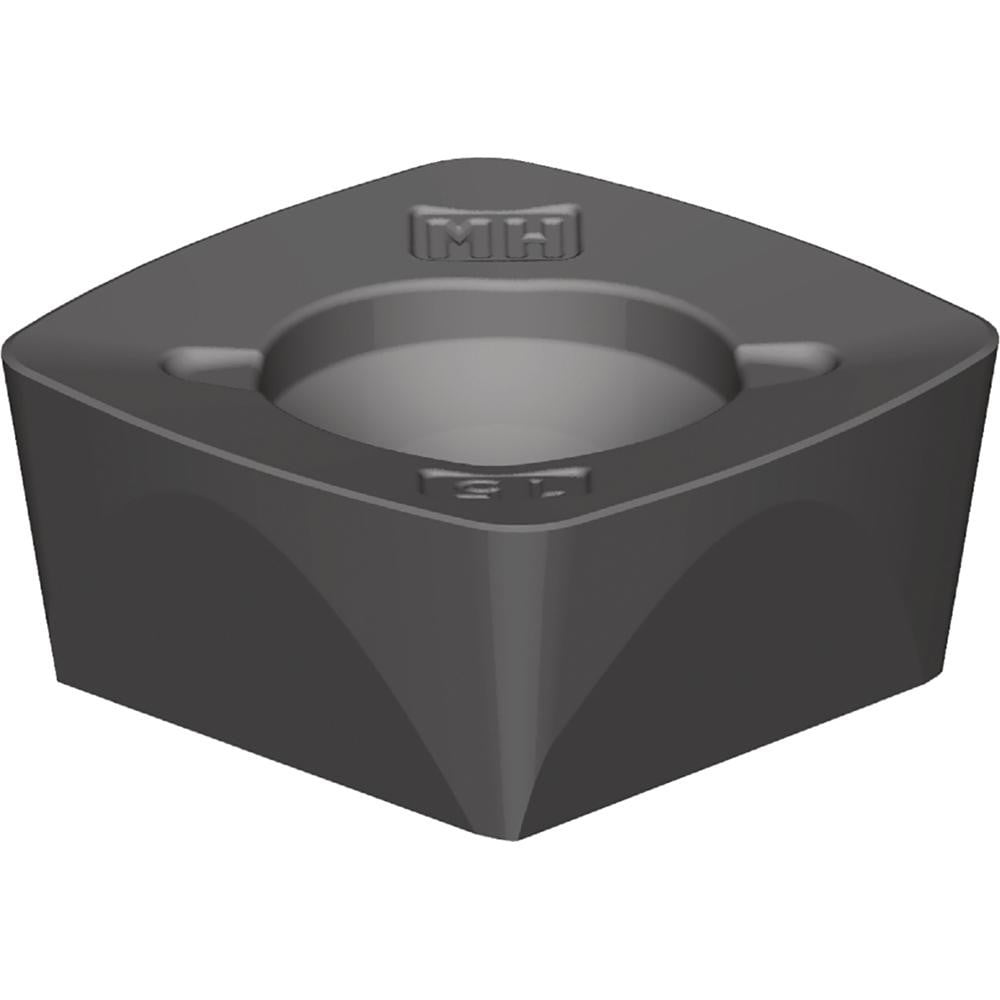

Brand: Widia / Part #: 6596440
Item #: 16747180
Brand: Widia
Model #: 6596440
Product Specifications
| Insert Style | XDPT |
| Insert Size Code | 1205 |
| Insert Size | 12 |
| Insert Material | Carbide |
| Width (Inch) | 1/2 |
| Manufacturer Grade | WP40PM |
| Length (Inch) | 1/2 |
| Thickness (Inch) | 7/32 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Corner Radius (Decimal Inch) | 0.0586 |
| Insert Hand | Right Hand |
| Relief Angle | 9.000 |
| Series | VXF |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.2126 |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | XDPT120515SRMH |
| Iso Code | XDPT120515SRMH |
| Manufacturers Catalog Number | XDPT120515SRMH |
| Cutter Series Compatibility | VXF XD12 |
| Chip Breaker | MH |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | AlCrN; TiAlN |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2188 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5000 |
