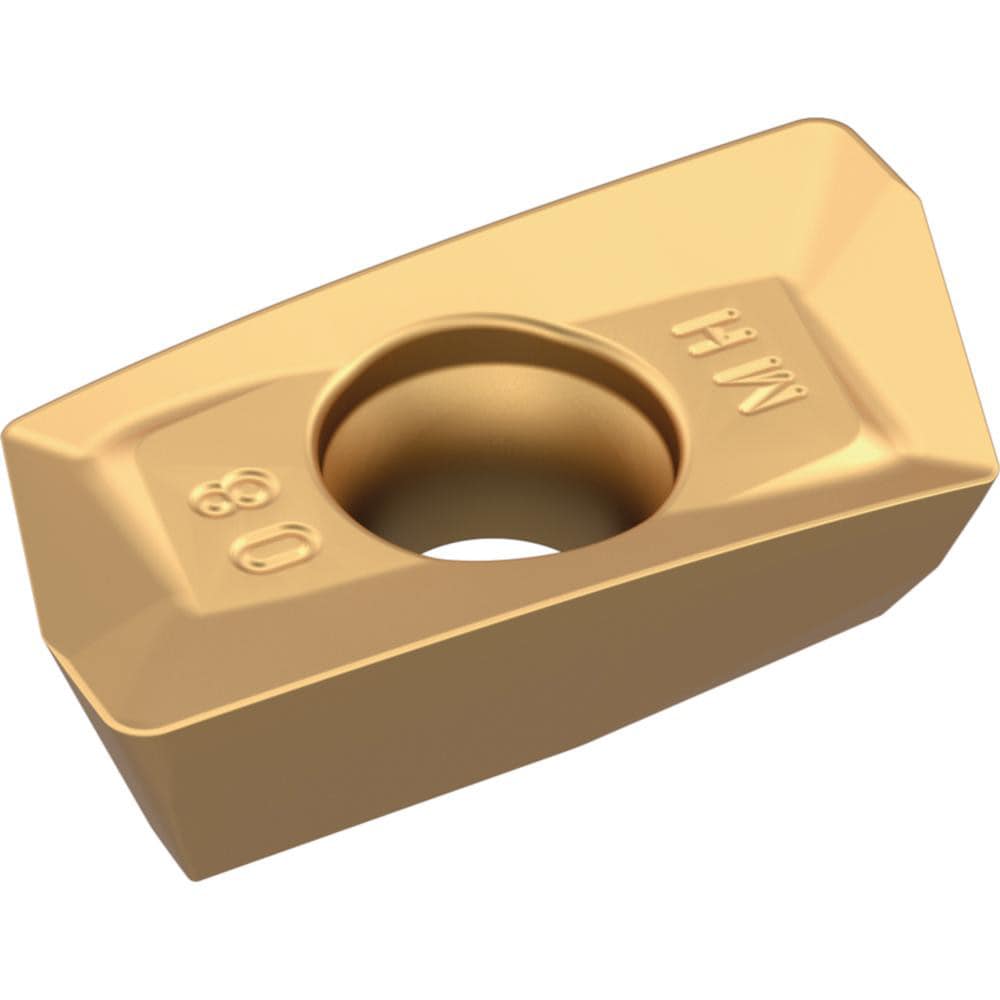

Brand: Widia / Part #: 5991816
Item #: 95192985
Brand: Widia
Model #: 5991816
Product Specifications
| Insert Style | XDPT |
| Insert Size Code | 1704 |
| Insert Size | 17 |
| Insert Material | Carbide |
| Manufacturer Grade | WP35CM |
| Inscribed Circle (Decimal Inch) | 0.3780 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Corner Radius (Inch) | 3/64 |
| Insert Hand | Right Hand |
| Relief Angle | 15.000 |
| Series | VSM17 |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (Decimal Inch) | 0.6580 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Super-alloys & Titanium |
| Secondary Workpiece Material Code | S |
| Ansi Code | XDPT1703SRMH |
| Iso Code | XDPT170412PESRMH |
| Manufacturers Catalog Number | XDPT1703SRMH |
| Cutter Series Compatibility | VSM17 XDPT |
| Chip Breaker | MH |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Parallelogram |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Included Angle Degree | 75 |
| Width (Decimal Inch - 4 Decimals) | 0.3780 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1930 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.7540 |
