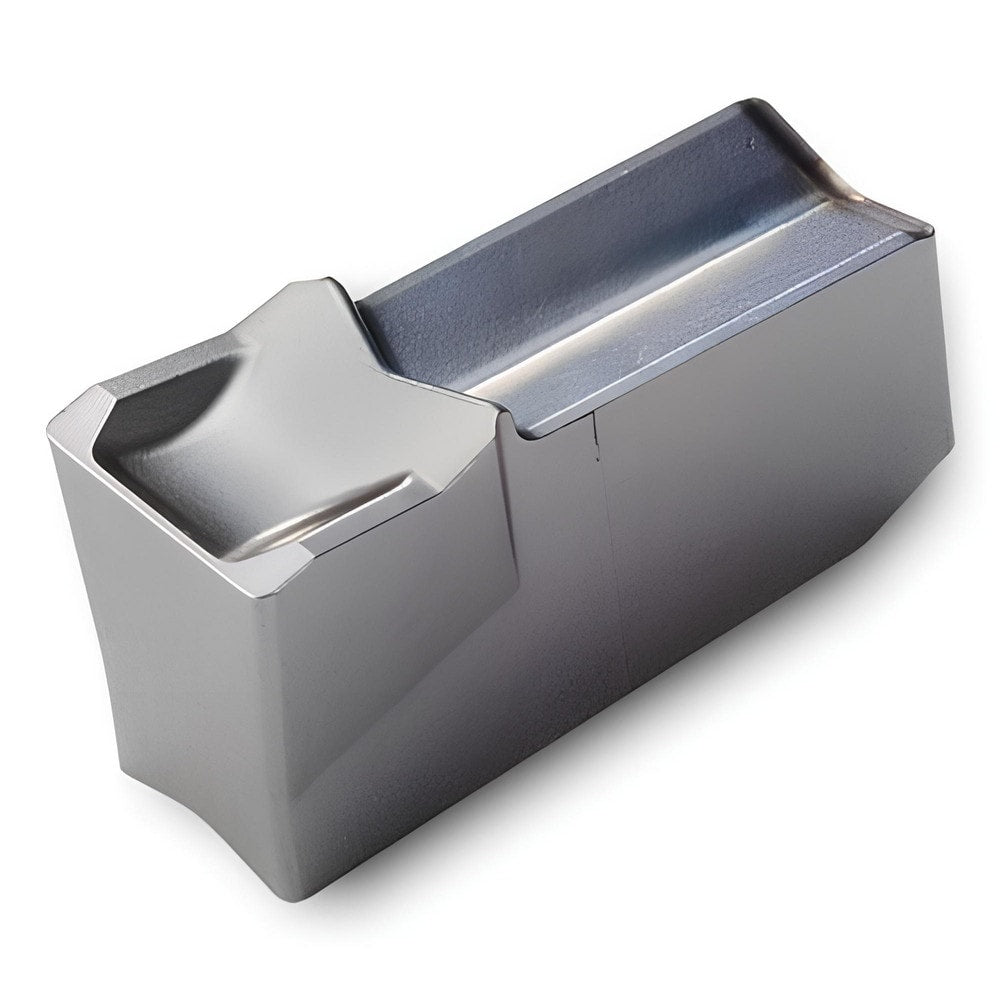

Brand: Ingersoll Cutting Tools / Part #: 6050201
Item #: 48793947
Brand: Ingersoll Cutting Tools
Model #: 6050201
Product Specifications
| Insert Style | TIMC |
| Insert Size Code | 4 |
| Insert Size | 4 |
| Insert Material | Carbide |
| Manufacturer Grade | TT5100 |
| Inscribed Circle (Decimal Inch) | 0.1610 |
| Corner Radius (Decimal Inch) | 0.0100 |
| Insert Hand | Neutral |
| Series | TIMC |
| Coating Process | MTCVD |
| Number Of Cutting Edges | 1 |
| Insert Shape | Rectangle |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Ansi Code | TIMC4 |
| Manufacturers Catalog Number | TIMC4 TT5100 |
| Cutter Series Compatibility | TSC.K |
| Chip Breaker | None |
| Cutting Direction | Neutral |
| Shape | Rectangle |
| Insert Holding Method | Clamp |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Width (Decimal Inch - 4 Decimals) | 0.1610 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1610 |
| Multi-Use Tool | No |
