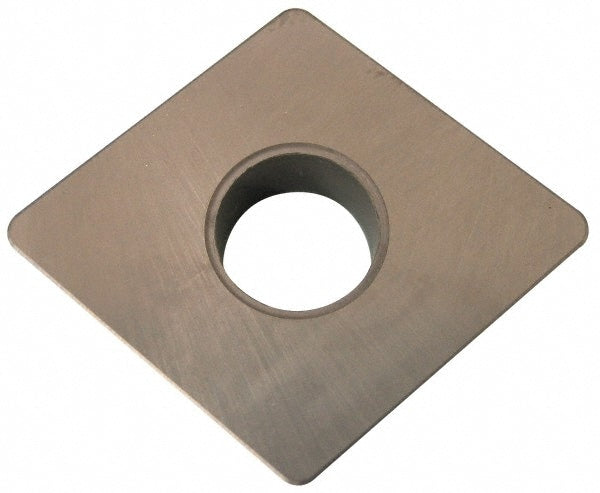

Brand: NTK / Part #: 5046826
Item #: 86122769
Brand: NTK
Model #: 5046826
Product Specifications
| Insert Style | CNGA |
| Insert Shape Code | C |
| Insert Size Code | 643 |
| Insert Shape | Diamond |
| Coating/Finish | Al2O3; TiC |
| Manufacturer Grade | HC2 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Insert Material | Ceramic |
| Hole Diameter (Decimal Inch) | 0.3120 |
| Inscribed Circle (Inch) | 3/4 |
| Inscribed Circle (mm) | 19.05 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Insert Holding Method | Pin; Clamp |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Clearance Code | N |
| Tolerance Code | G |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Rake | Negative |
| Chip Breaker | A |
