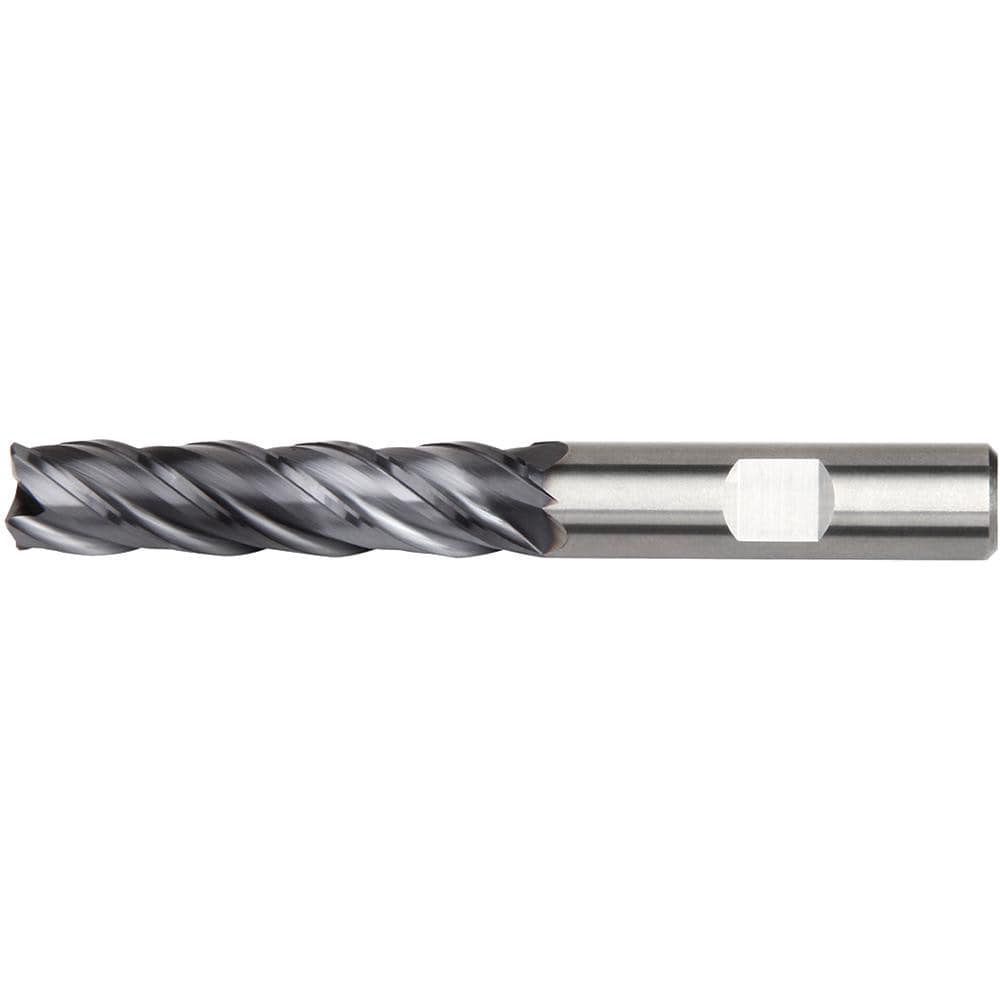

Brand: Widia / Part #: 3641117
Item #: 33983024
Brand: Widia
Model #: 3641117
Product Specifications
| Mill Diameter (mm) | 20.00 |
| Chamfer Width (mm) | 0.50 |
| Coating/Finish | TiAlN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 4 |
| Single Or Double End | Single |
| Overall Length (mm) | 125.00 |
| Length of Cut (mm) | 57.00 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Flute Direction | Right Hand |
| Chipbreaker | No |
| End Type | Single |
| Chamfer Angle | 45 |
| Length Type | Long |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Centercutting | Yes |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Reach Length (mm) | 57.00 |
| Minimum Helix Angle | 38.00 |
| Maximum Helix Angle | 38.00 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Steel; Super Alloys & Titanium |
| Primary Workpiece Material Code | P; S; H; M |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Series | 4717 |
