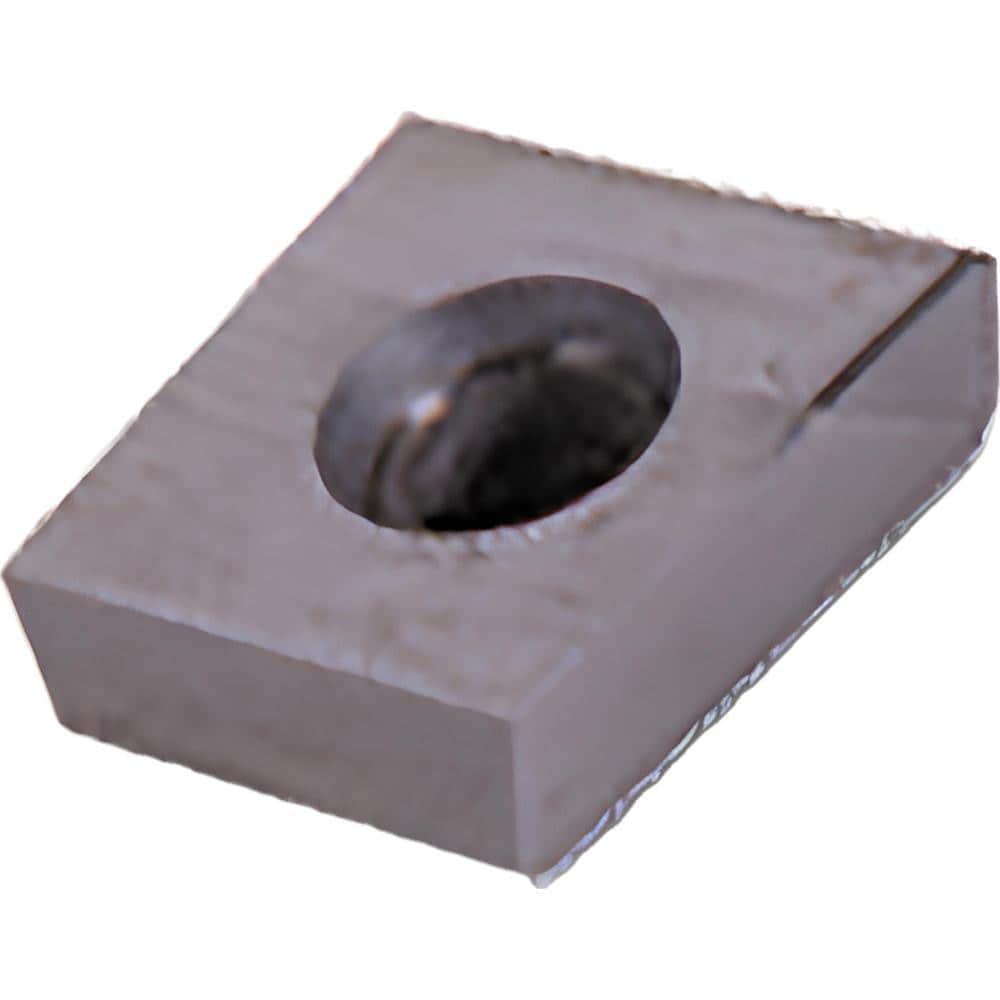

Brand: Ingersoll Cutting Tools / Part #: 5805640
Item #: 67327312
Brand: Ingersoll Cutting Tools
Model #: 5805640
Product Specifications
| Insert Style | PYE |
| Insert Size Code | 003 |
| Insert Material | Polycrystalline Diamond |
| Manufacturer Grade | IN90D |
| Length (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Insert Hand | Right Hand |
| Series | PYE |
| Coating Process | Uncoated |
| Maximum Depth of Cut (Decimal Inch) | 0.2560 |
| Number Of Cutting Edges | 1 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | PYE-43R003 S |
| Manufacturers Catalog Number | PYE-43R003 S IN90D |
| Chip Breaker | None |
| Cutting Direction | Right Hand |
| Shape | Square |
| Length of Cut (mm) | 6.5000 |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Coating/Finish | Uncoated |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | No |
