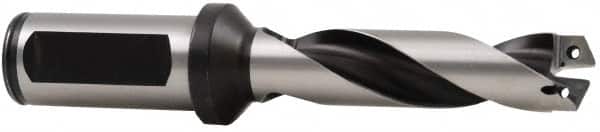

Allied Machine and Engineering - 30mm to 35mm Diam 187.3mm Max Depth Helical Flute Spade Drill
Item #: 79730966
Brand: Allied Machine and Engineering
Model #: 24025H-32FM
Features and Benefits
Helical flutes are used for vertical machining center applications.
| Product Specifications | |
|---|---|
| Series | 2.5 |
| Minimum Drill Diameter (mm) | 30.00 |
| Maximum Drill Diameter (mm) | 35.00 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 32.00 |
| Spade Drill Length | Standard Length |
| Overall Length (mm) | 288.10 |
| Maximum Drill Depth (mm) | 187.30 |
| Flute Type | Helical Flute |
| Flute Length (mm) | 230.20 |
| Body Length (mm) | 233.80 |
| Shank Length (mm) | 57.90 |
| Through Coolant | Yes |
| Coolant Hole Thread Type | BSP |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
