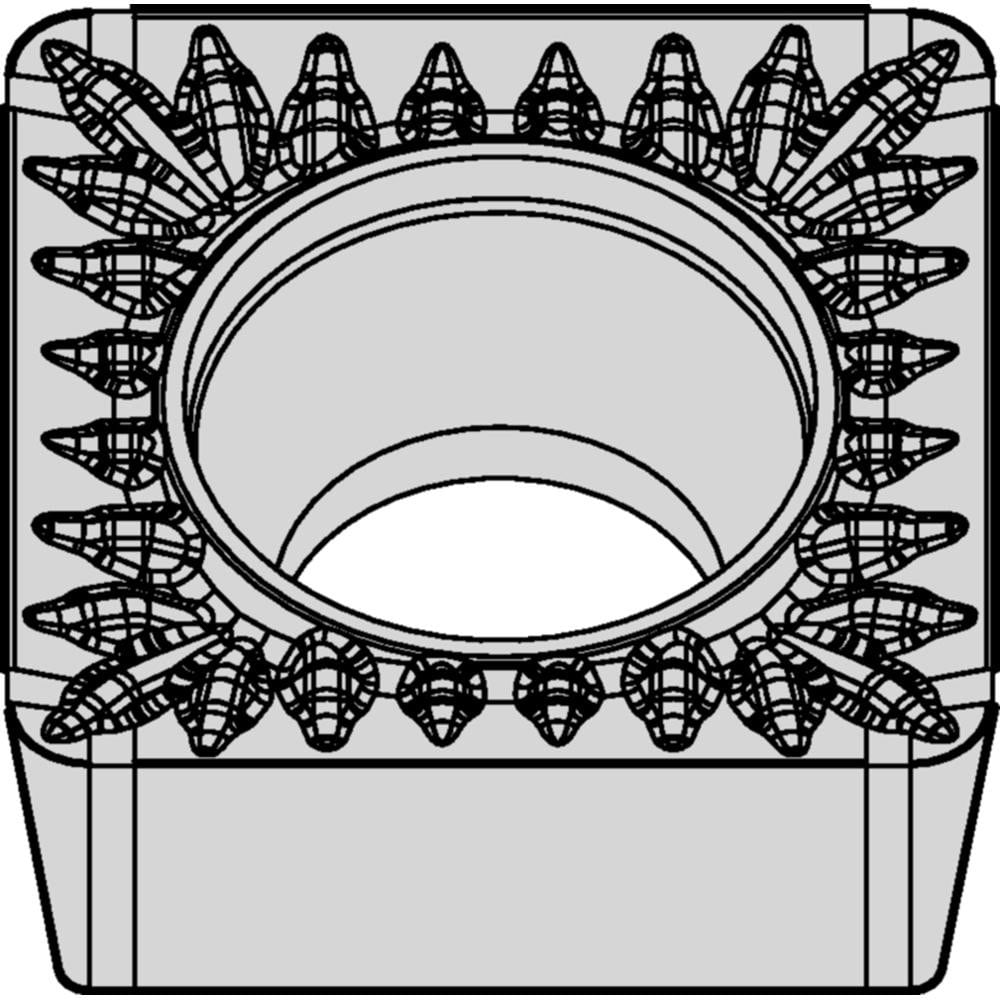

Brand: Widia / Part #: 4170228

Brand: Widia / Part #: 4170228


Item #: 94058427
Brand: Widia
Model #: 4170228

Product Specifications

Insert Style SCMT
Insert Shape Code S
Insert Size Code 431
Insert Shape Square
Coating/Finish TiCN; TiN; ZrCN; Al2O3
Manufacturer Grade WP25CT
Corner Radius (Decimal Inch) 0.0157
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.2165
Maximum Depth of Cut (Decimal Inch) 0.2500
Inscribed Circle (Decimal Inch) 0.5000
Insert Holding Method Screw
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1875
Clearance Code C
Tolerance Code M
Included Angle 90.00
Relief Angle 7.000
Series SCMT
Coating Process MTCVD
Rake Positive
Wiper Edge No
Insert Length (Decimal Inch) 0.5000
Number Of Cutting Edges 4
Primary Workpiece Material Steel
Primary Workpiece Material Code P
Secondary Workpiece Material Cast Iron
Secondary Workpiece Material Code K
Ansi Code SCMT431MP
Iso Code SCMT120404MP
Manufacturers Catalog Number SCMT431MP
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker MP
Style SCMT
Width (Decimal Inch - 4 Decimals) 0.5000
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$9.40
