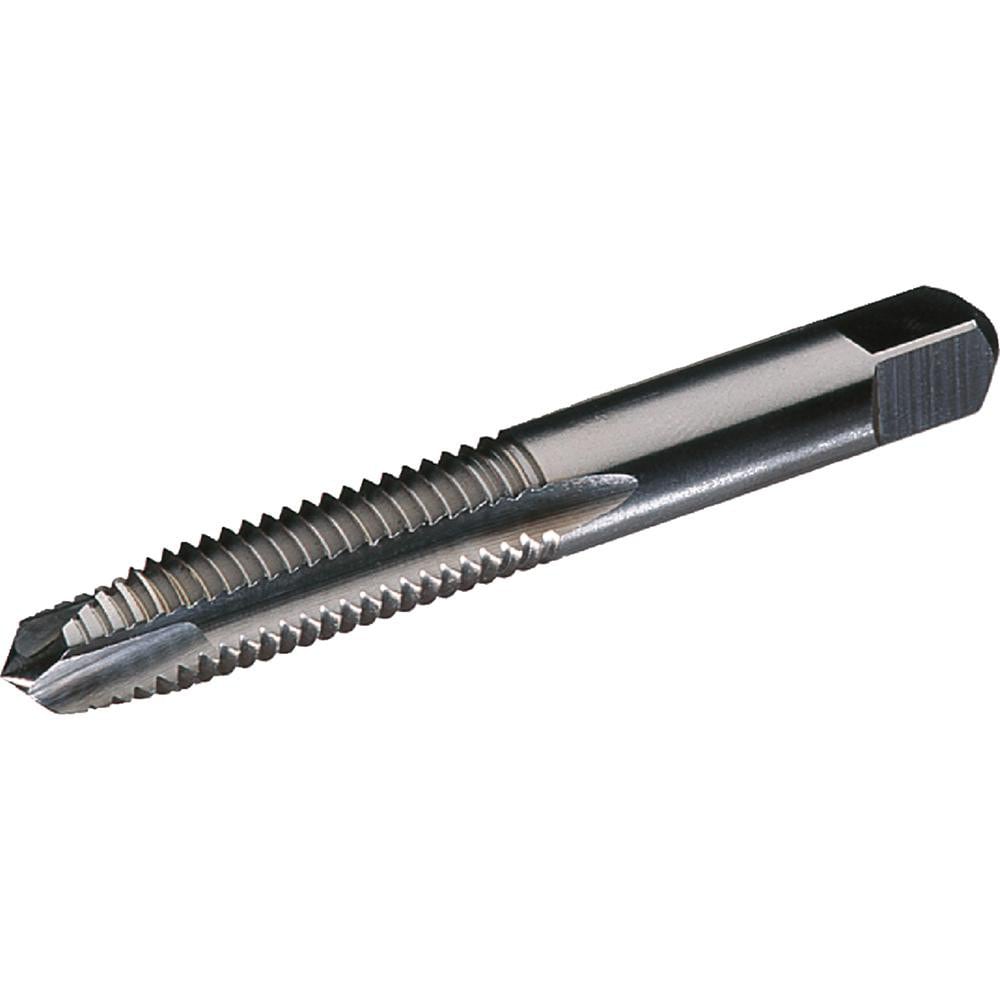

Brand: Widia / Part #: 2750302
Item #: 93320950
Brand: Widia
Model #: 2750302
Product Specifications
| Thread Size (Inch) | #8-32 |
| Number Of Flutes | 2 |
| Chamfer | Plug |
| Thread Limit | H2 |
| Class Of Fit | H2 |
| Coating/Finish | Black Oxide |
| Threads per Inch | 32 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (Decimal Inch) | 0.7500 |
| Thread Pitch (Decimal Inch) | 0.0313 |
| Thread Standard | UNC |
| Thread Length (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 2.1250 |
| Shank Diameter (Decimal Inch) | 0.1680 |
| Square Size (Decimal Inch) | 0.1310 |
| Material Application | Non-Ferrous Metal; High-Temperature Alloy; Stainless Steel; Cast Iron; Steel |
| Series | 5301/2301 |
