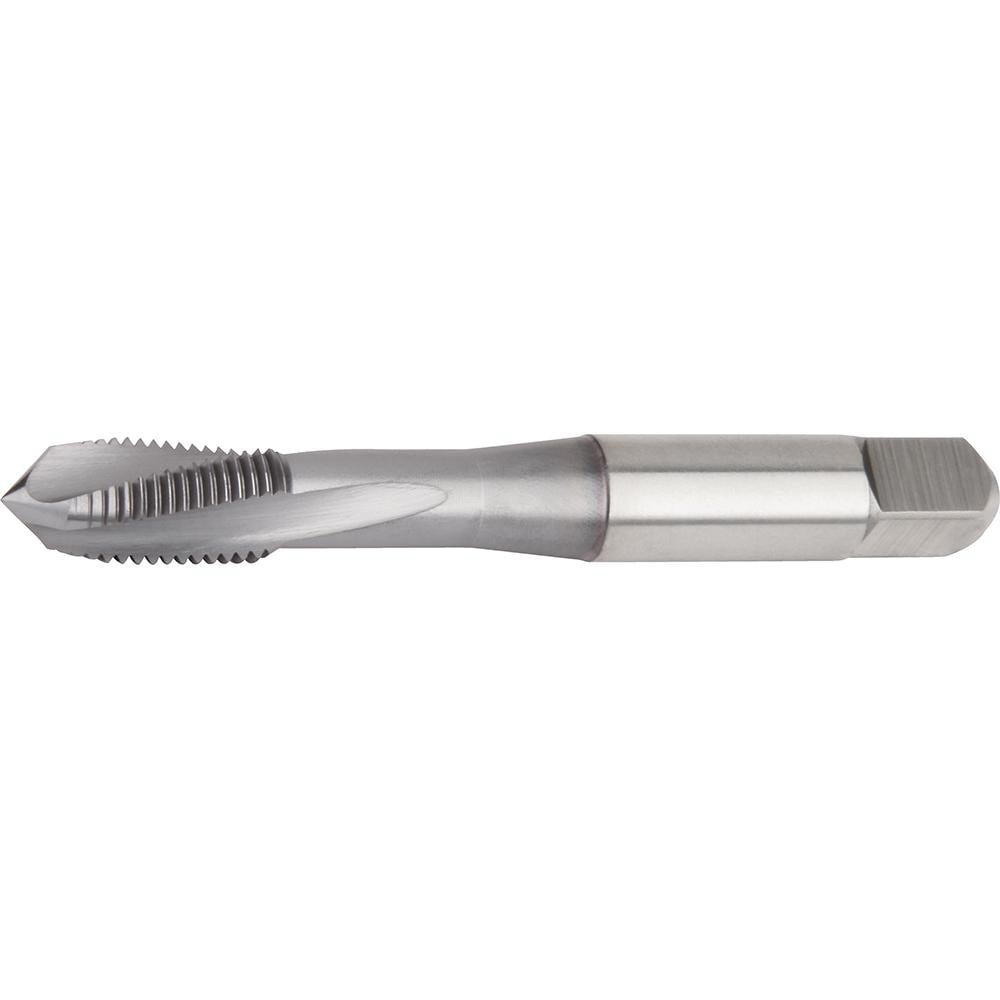

Brand: Widia / Part #: 5705069
Item #: 97317010
Brand: Widia
Model #: 5705069
Product Specifications
| Thread Size (mm) | M5x0.8 |
| Chamfer | Plug |
| Thread Limit | D4 |
| Class Of Fit | 6H |
| Number Of Flutes | 3 |
| Material | Powdered Metal |
| Threads per Inch | 32 |
| Thread Direction | Right Hand |
| Flute Direction | Left Hand |
| Coating/Finish | Oxide; Nitride |
| Thread Depth (mm) | 23.40 |
| Coolant Through | No |
| Thread Length (mm) | 11.80 |
| Overall Length (mm) | 60.5000 |
| Thread Pitch (mm) | 0.80 |
| Thread Standard | Metric |
| Material Grade | WS39MG |
| Shank Diameter (mm) | 4.9300 |
| Square Length (mm) | 6.40 |
| Square Size (mm) | 3.81 |
| Material Application | High-Temperature Alloy |
| Series | GT90 |
