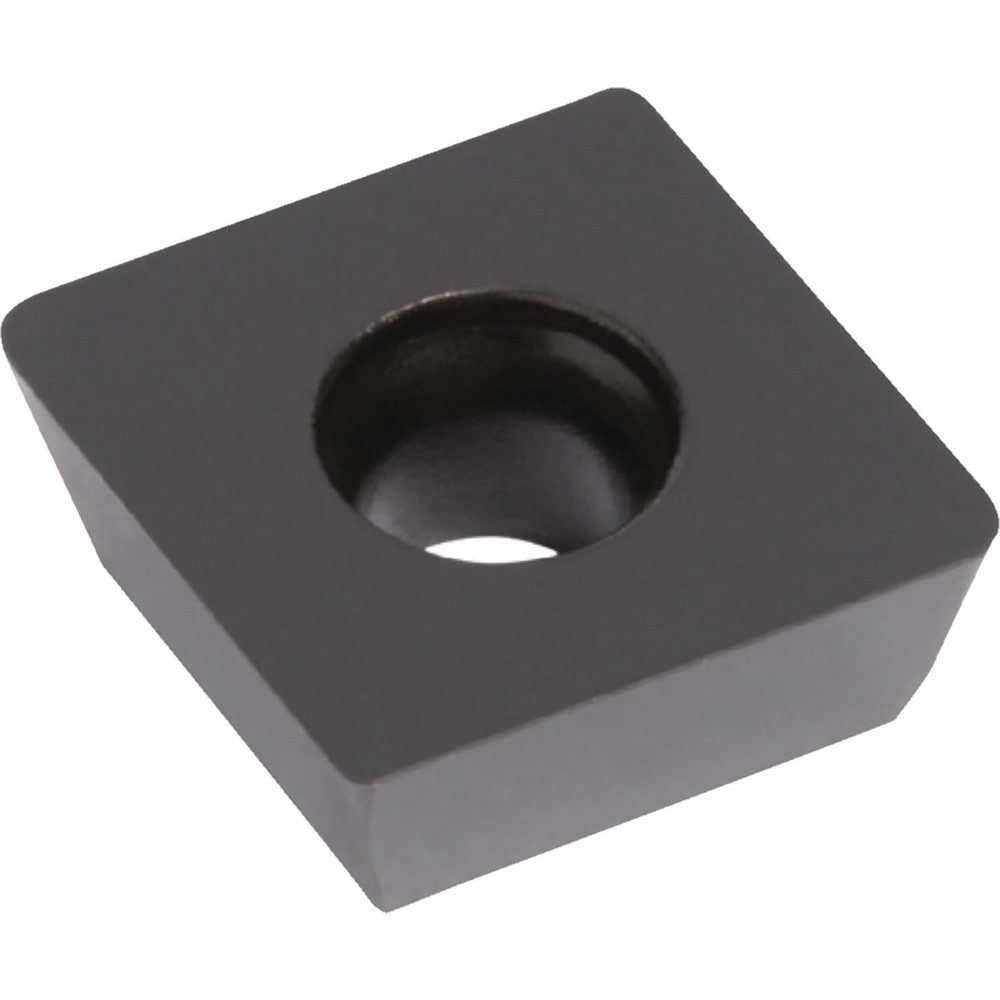

Brand: Widia / Part #: 5903708
Item #: 94117041
Brand: Widia
Model #: 5903708
Product Specifications
| Insert Style | MDHX |
| Insert Size Code | 09T3 |
| Insert Size | 09 |
| Insert Material | Carbide |
| Width (Inch) | 3/8 |
| Manufacturer Grade | WP35CM |
| Length (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Neutral |
| Relief Angle | 15.000 |
| Series | M900 |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.1339 |
| Maximum Depth of Cut (Decimal Inch) | 0.3759 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Diamond |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Super-alloys & Titanium |
| Secondary Workpiece Material Code | S |
| Ansi Code | MDHX09T308 |
| Iso Code | MDHX09T308 |
| Manufacturers Catalog Number | MDHX09T308 |
| Cutter Series Compatibility | M900 MD09T3 IN |
| Chip Breaker | None |
| Cutting Direction | Neutral |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Diamond |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Included Angle Degree | 86 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1563 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3750 |
