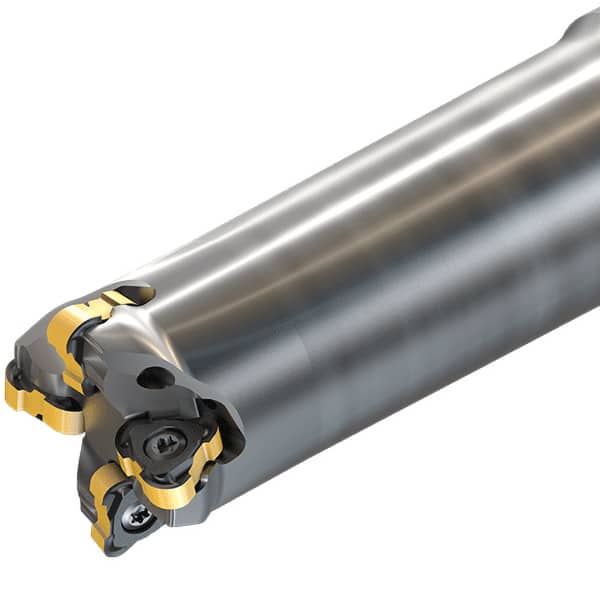

Iscar - Indexable Copy End Mills Maximum Depth of Cut (mm): 1.00 Maximum Depth of Cut (Decimal Inch): 0.0390
Item #: 15111347
Brand: Iscar
Model #: 3320750
Product Specifications
Indexable Copy End Mills; Maximum Depth of Cut (mm): 1.00 ; Maximum Depth of Cut (Decimal Inch): 0.0390 ; Shank Type: Cylindrical ; Shank Diameter (mm): 20.0000 ; Shank Diameter (Inch): 0.7870 ; Shank Diameter (Decimal Inch): 0.7870
| Maximum Depth of Cut (mm) | 1.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0390 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 20.0000 |
| Shank Diameter (Inch) | 0.7870 |
| Shank Diameter (Decimal Inch) | 0.7870 |
| Number of Cutter Inserts | 4 |
| Insert Style | TR |
| Toolholder Style | TR6 |
| Series | TOR6MILL |
| Overall Length (mm) | 120.0000 |
| Overall Length (Decimal Inch) | 4.72400 |
| Toolholder Material | Steel |
| Through Coolant | Coolant Through |
| Weldon Flat | No |
| Number of Flutes | 4 |
| Head Length (mm) | 60.00 |
| Head Length (Decimal Inch) | 2.3620 |
| Shank Length (mm) | 120.000 |
| Shank Length (Decimal Inch) | 4.7240 |
| Maximum Cutting Diameter (Decimal Inch) | 0.7870 |
