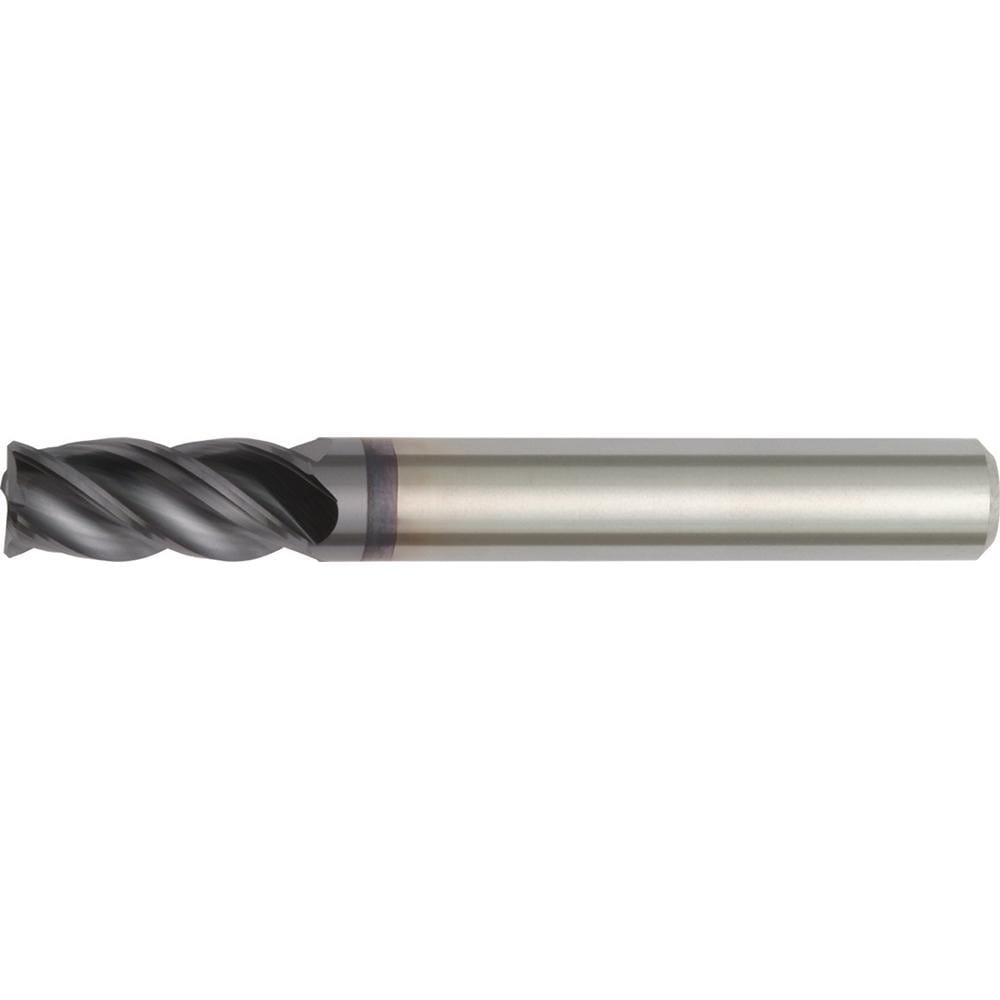

Brand: Widia / Part #: 1920427

Brand: Widia / Part #: 1920427


Item #: 34047035
Brand: Widia
Model #: 1920427

Product Specifications

Mill Diameter (mm) 5.00
Chamfer Width (mm) 0.40
Coating/Finish TiAlN
End Mill Material Solid Carbide
Number Of Flutes 4
Single Or Double End Single
Overall Length (mm) 57.00
Length of Cut (mm) 13.00
Cutting Direction Right Hand
Coolant Through No
Flute Direction Right Hand
Chipbreaker No
End Type Single
Chamfer Angle 45
Length Type Regular
Flute Type Variable
Extended Reach No
Shank Type Straight-Cylindrical
Centercutting Yes
Material Removal Type Roughing & Finishing
Shank Diameter (Decimal Inch) 6.0000
Shank Diameter (Inch) 6
Reach Length (mm) 13.00
Minimum Helix Angle 38.00
Maximum Helix Angle 38.00
Primary Workpiece Material Hard Material; Stainless Steel; Cast Iron; Steel
Primary Workpiece Material Code P; H; K; M
Secondary Workpiece Material High Temperature Alloy
Secondary Workpiece Material Code S
Material Grade TiAlN-LT
Series 4777
$30.79
