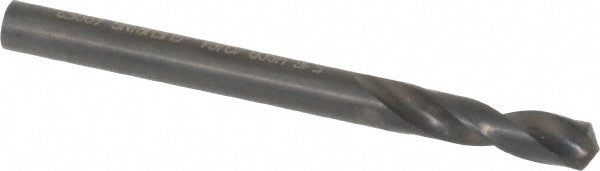

Brand: Guhring / Part #: 9003290051600
Item #: 59706945
Brand: Guhring
Model #: 9003290051600
Product Specifications
| Drill Bit Size (Inch) | 13/64 |
| Drill Bit Size (Decimal Inch) | 0.2031 |
| Tool Material | Cobalt |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 130 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2031 |
| Overall Length (mm) | 62.00 |
| Overall Length (Decimal Inch) | 2.4409 |
| Series | 329 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Drill Length Type | Stub |
| Maximum Drilling Depth (Decimal Inch) | 0.7190 |
| Maximum Drilling Depth (mm) | 18.26 |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.00 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.000 to -0.018 mm |
| Standards | DIN 1897 |
| Flute Length (mm) | 26.00 |
| Drill Bit Size Range (Decimal Inch) | 0.2000 to 0.2500 |
| Specification Number | DIN 1897 |
| Specification Designation | DIN |
