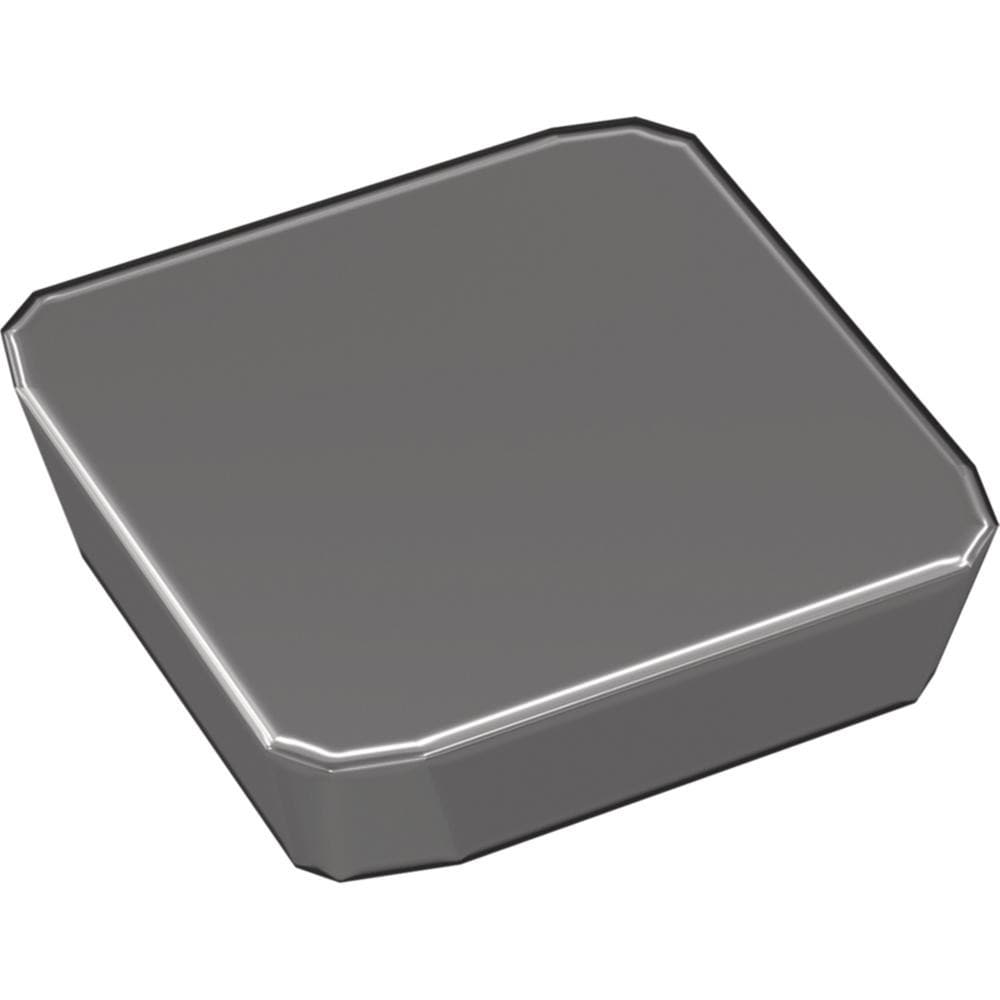

Brand: Widia / Part #: 2557266
Item #: 94092483
Brand: Widia
Model #: 2557266
Product Specifications
| Insert Style | SPKN |
| Insert Size Code | 1504 |
| Insert Size | 15 |
| Insert Material | Carbide |
| Width (Inch) | 5/8 |
| Manufacturer Grade | THM |
| Length (Inch) | 5/8 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Insert Hand | Right Hand |
| Relief Angle | 11.000 |
| Series | SPKN |
| Coating Process | Uncoated |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.6250 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Square |
| Rake | Positive |
| Secondary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Secondary Workpiece Material Code | K; N |
| Ansi Code | SPKN1504EDR |
| Iso Code | SPKN1504EDR |
| Manufacturers Catalog Number | SPKN1504EDR |
| Chip Breaker | None |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Square |
| Insert Holding Method | Clamp |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Coating/Finish | Uncoated |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.6250 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6250 |
