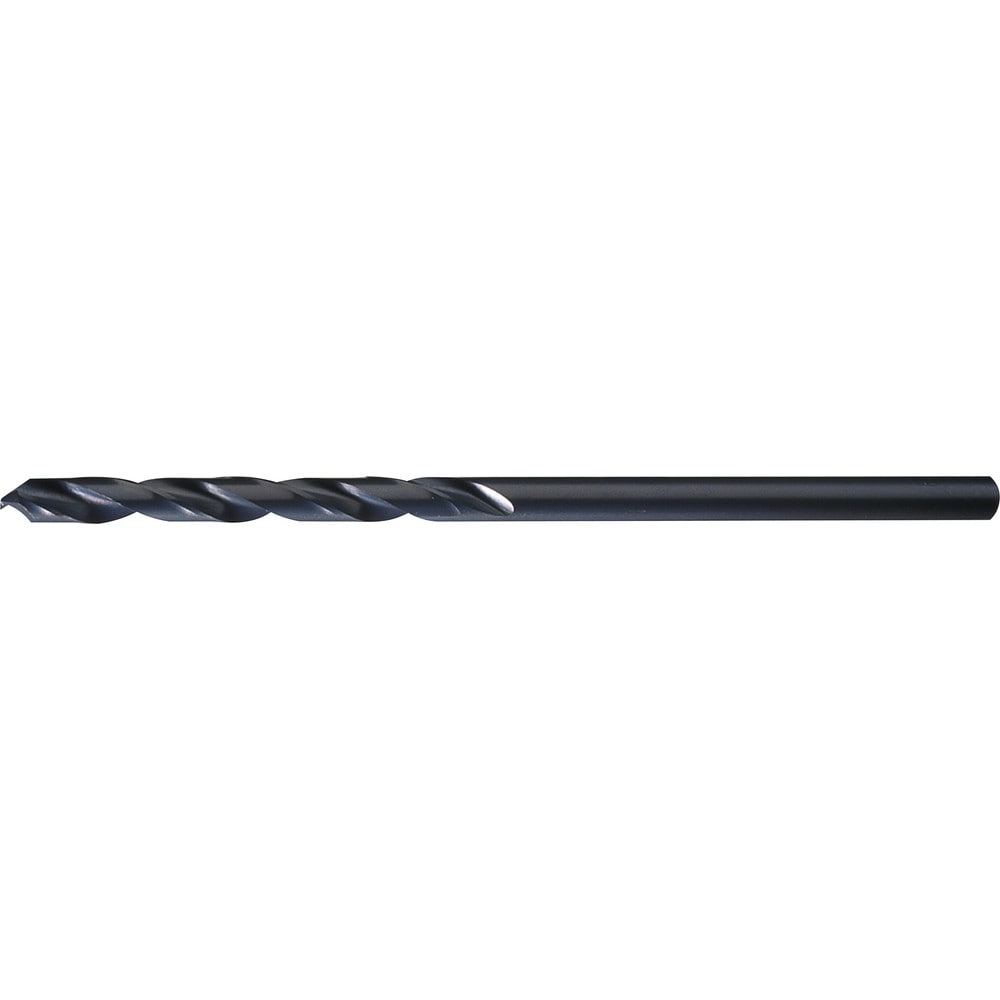

Let-F HSS 135 NAS-Type Aircraft Extension Drill 6IN OAL Chicago-Latrobe 906 Steam Oxide RHS/RHC
Item #: 02726545
Brand: Chicago-Latrobe
Model #: 11255
Product Specifications
| Drill Bit Size (Letter) | F |
| Overall Length (Inch) | 6 |
| Tool Material | High-Speed Steel |
| Coating/Finish | Oxide |
| Series | 906 |
| Drill Point Angle (Degrees) | 135 |
| Drill Bit Size (Decimal Inch) | 0.2570 |
| Shank Type | Straight-Cylindrical |
| Flute Type | Spiral |
| Flute Length (Inch) | 2-7/8 |
| Flute Length (Decimal Inch) | 2.8750 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (Decimal Inch) | 2.3610 |
| Self-Centering | Yes |
| Point Type | Split |
| Drill Bit Diameter Tolerance | +0.0000 / -0.0010 |
| Shank Diameter (Decimal Inch) | 0.2570 |
| Number of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Tool Performance | General Purpose |
| UNSPSC Code | 20111614 |
