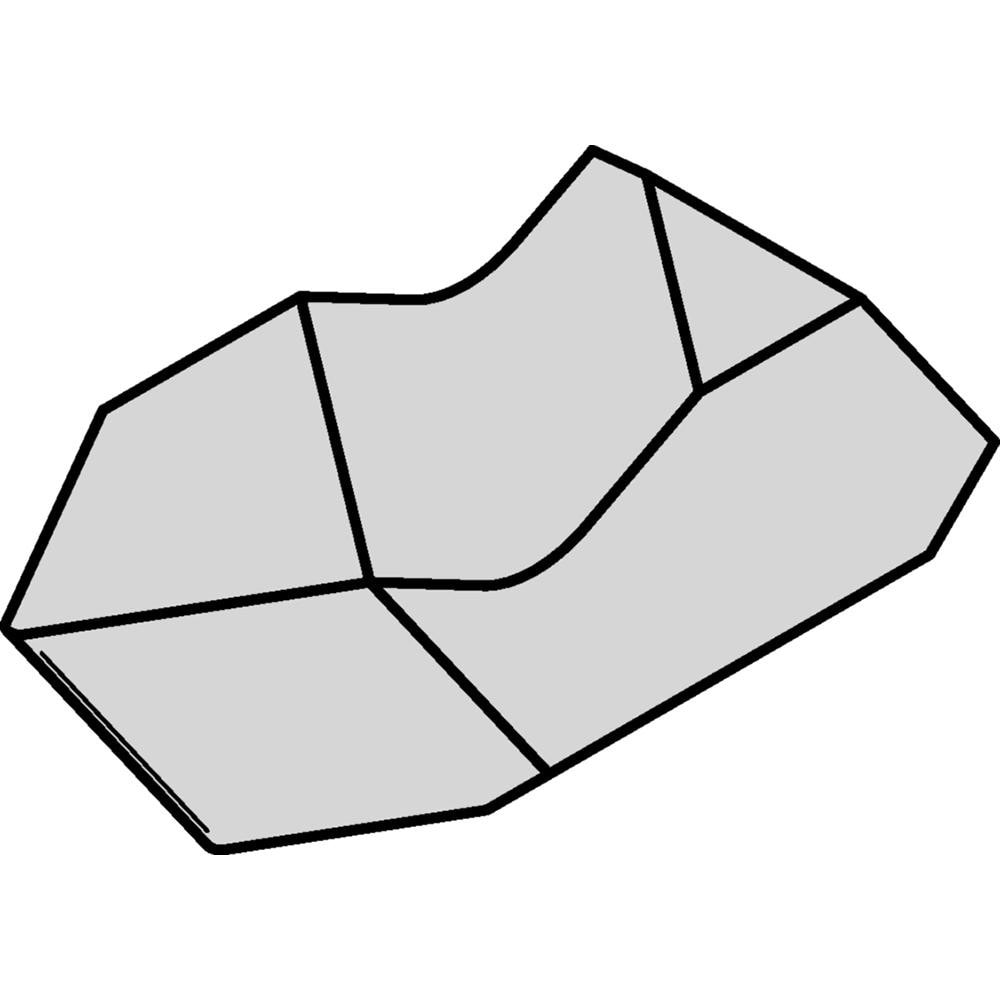

Brand: Widia / Part #: 3636551
Item #: 19700285
Brand: Widia
Model #: 3636551
Product Specifications
| Insert Style | NT-1L |
| Insert Material | Carbide |
| Manufacturer Grade | TN6010 |
| Thread Type | Internal |
| Material Grade | TN6010 |
| Thread Standard | 60 Degree V |
| Insert Hand | Left Hand |
| Internal Pitch | 1.0-2.0 |
| External Pitch | 1.0-2.0 |
| Included Angle | 60.00 |
| Chipbreaker | FLAT |
| Series | NT-1L |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0030 |
| Corner Radius (mm) | 0.08 |
| Ansi Code | NT1L |
| Iso Code | NT1L |
| Maximum Corner Radius (Decimal Inch) | 0.0030 |
| Maximum Depth of Cut (Decimal Inch) | 0.0866 |
| Coating Classification | PVD |
| Shape | Irregular |
| Insert Holding Method | Clamp |
| Insert Size | 1 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1000 |
| Finish Coating | TiAlN |
| Coolant Through | No |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.0000 |
