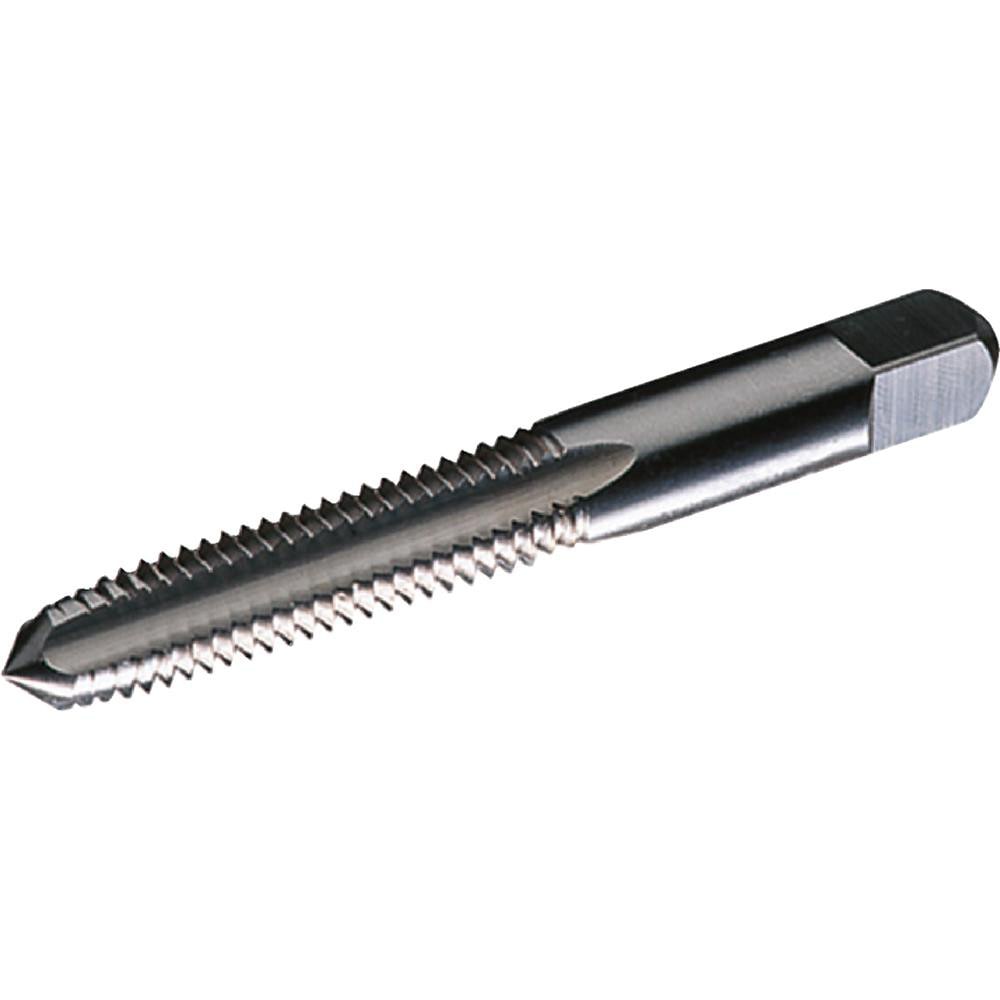

Brand: Widia / Part #: 2750948
Item #: 08724791
Brand: Widia
Model #: 2750948
Product Specifications
| Tap Type | Machine |
| Thread Size (Inch) | 1/2-20 |
| Class Of Fit | 2B |
| Number Of Flutes | 4 |
| Chamfer | Plug |
| Material | High Speed Steel |
| Coating/Finish | Uncoated |
| Threads per Inch | 20 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | UNF |
| Thread Pitch (Decimal Inch) | 0.0500 |
| Overall Length (Decimal Inch) | 3.3750 |
| Thread Length (Decimal Inch) | 1.6562 |
| Thread Depth (Decimal Inch) | 1.6562 |
| Application | Metal |
| Shank Diameter (Decimal Inch) | 0.3670 |
| Square Length (mm) | 11.11 |
| Square Size (Decimal Inch) | 0.2750 |
| Series | 7303 |
| Shank Length (Decimal Inch) | 1.7188 |
