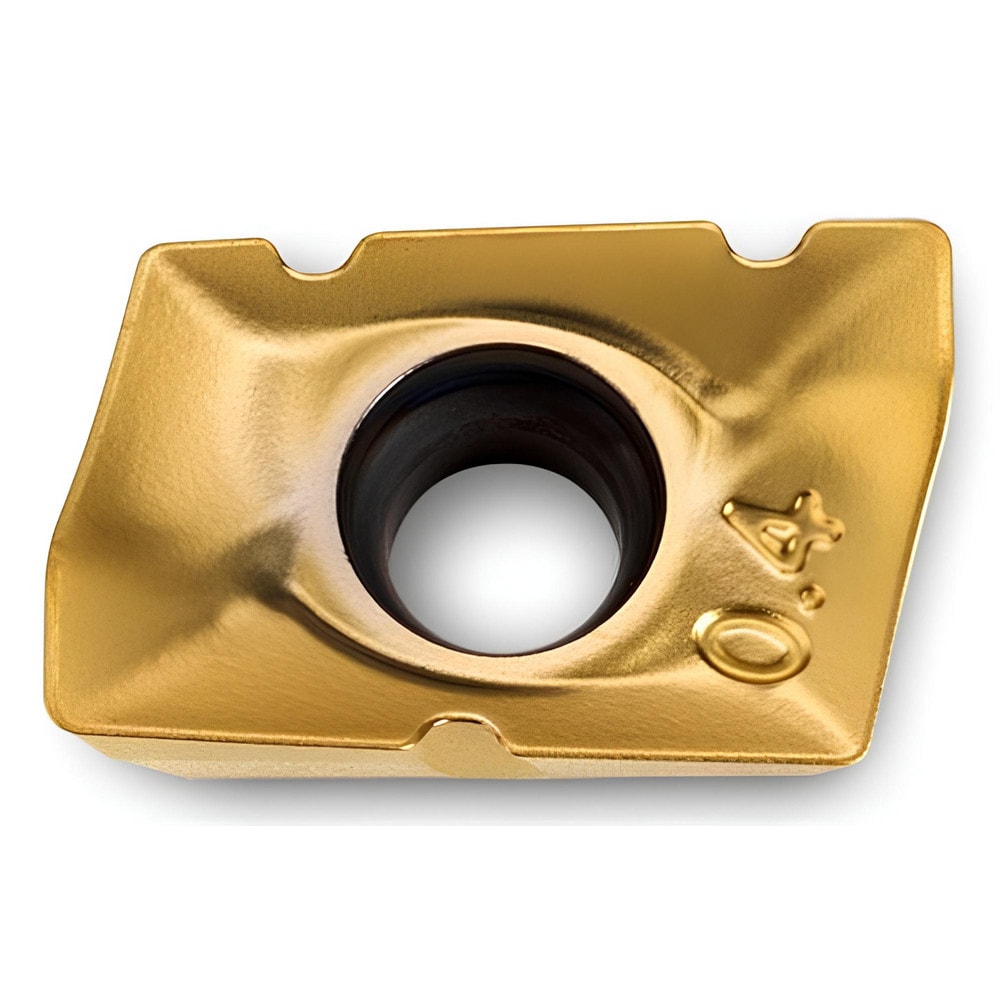

Brand: Ingersoll Cutting Tools / Part #: 5853700
Item #: 20738258
Brand: Ingersoll Cutting Tools
Model #: 5853700
Product Specifications
| Insert Style | ZOMT |
| Insert Size Code | 09 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2530 |
| Length (Inch) | 27/64 |
| Inscribed Circle (Decimal Inch) | 0.2590 |
| Corner Radius (Inch) | 1/64 |
| Insert Hand | Right Hand |
| Series | ZOMT |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.3500 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | ZOMT09T304R |
| Manufacturers Catalog Number | ZOMT09T304R IN2530 |
| Cutter Series Compatibility | 12L1P; 2J1P; 12J1P; 22J3P |
| Chip Breaker | None |
| Cutting Direction | Right Hand |
| Shape | Parallelogram |
| Length of Cut (mm) | 8.8900 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.2590 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1480 |
| Multi-Use Tool | Yes |
