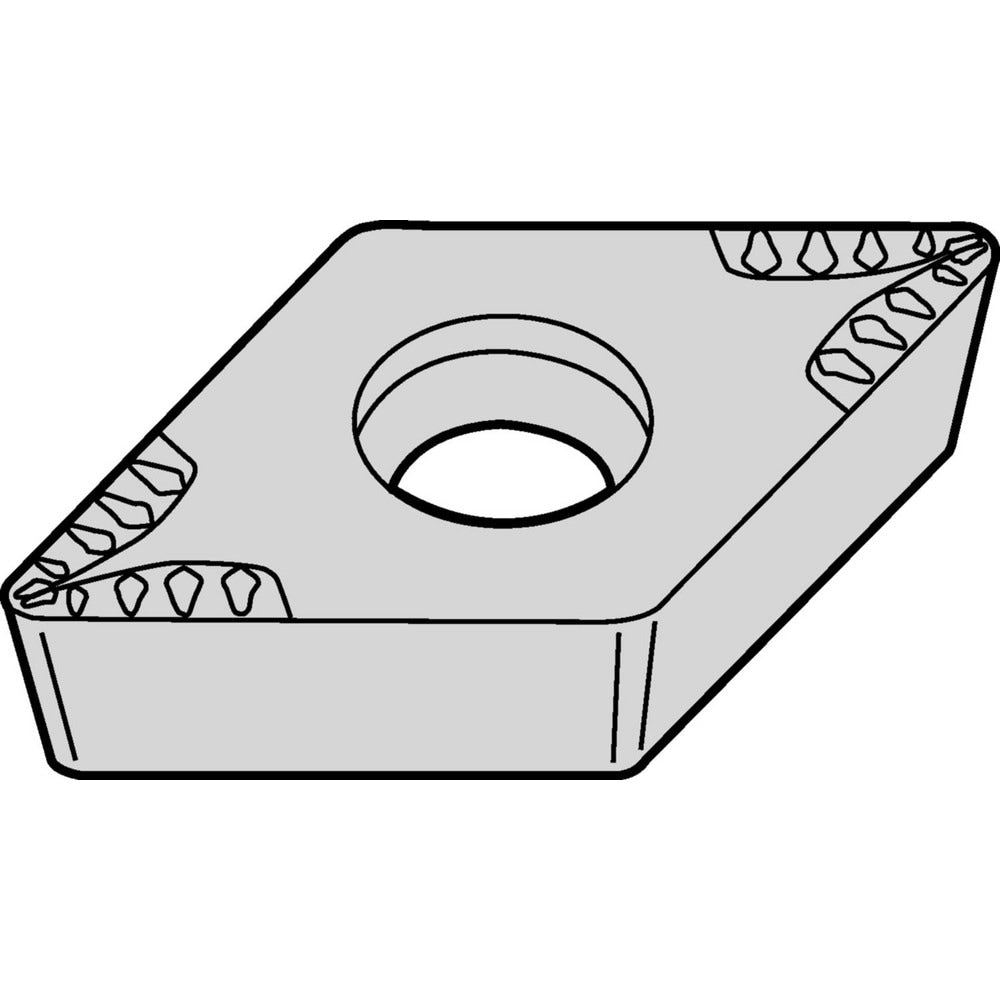

Brand: Widia / Part #: 6128283
Item #: 94100195
Brand: Widia
Model #: 6128283
Product Specifications
| Insert Style | DCMT |
| Insert Shape Code | D |
| Insert Size Code | 433 |
| Insert Shape | Diamond |
| Coating/Finish | TiN |
| Manufacturer Grade | W00342 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Insert Material | Carbide |
| Hole Diameter (Decimal Inch) | 0.2185 |
| Maximum Depth of Cut (Decimal Inch) | 0.3052 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Clearance Code | C |
| Tolerance Code | M |
| Included Angle | 55.00 |
| Relief Angle | 7.000 |
| Series | DCMT |
| Coating Process | CVD |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.6104 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | DCMT433MU |
| Iso Code | DCMT150412MU |
| Manufacturers Catalog Number | DCMT433MU |
| Cutting Direction | Neutral |
| Coating Classification | CVD |
| Chip Breaker | MU |
| Style | DCMT |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Internal Turning |
