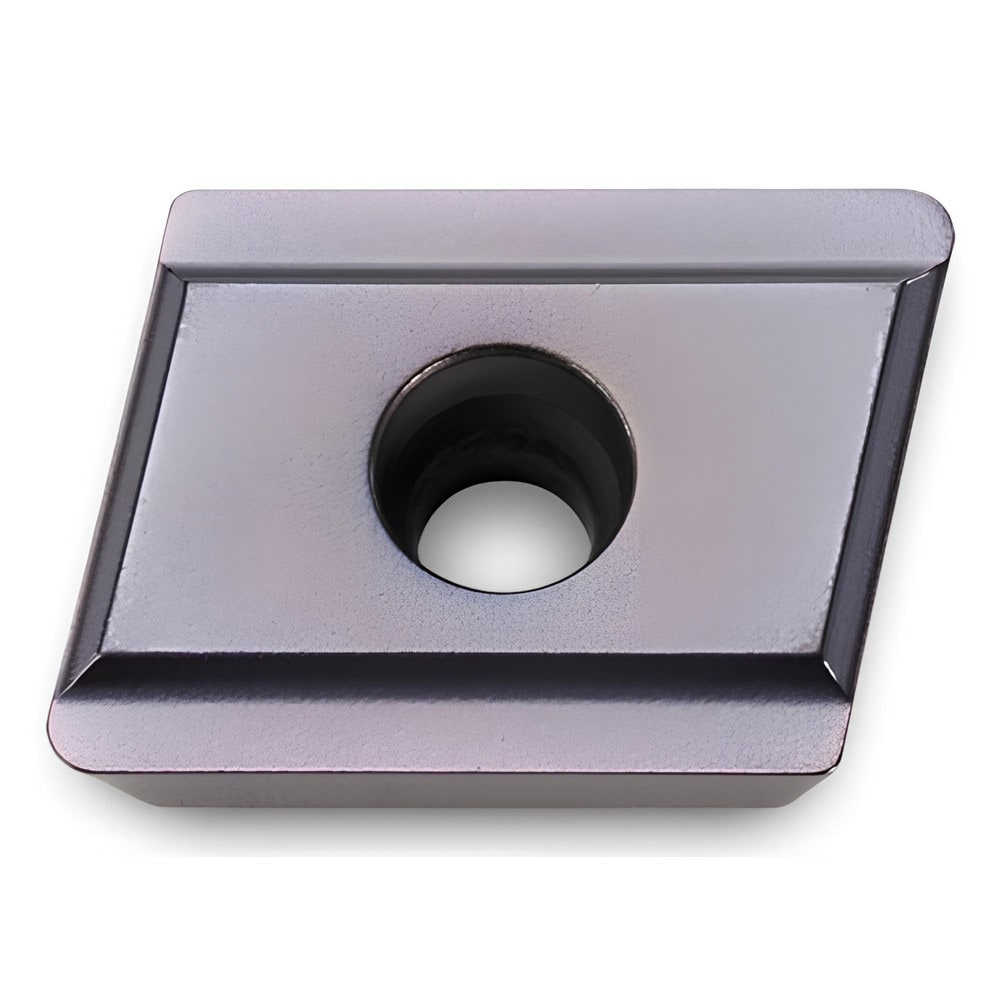

Brand: Ingersoll Cutting Tools / Part #: 4818354
Item #: 95105375
Brand: Ingersoll Cutting Tools
Model #: 4818354
Product Specifications
| Insert Style | NPMT |
| Insert Size Code | 080404 |
| Insert Material | Carbide |
| Manufacturer Grade | IN1510 |
| Thickness (Inch) | 5/32 |
| Cutting Direction | Right Hand |
| Corner Radius (Inch) | 1/64 |
| Chipbreaker | G |
| Series | NPMT |
| Coating Process | PVD |
| Shape | Parallelogram |
| Number Of Cutting Edges | 2 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Manufacturers Catalog Number | NPMT080404R-G IN1510 |
| Drill Style | TBTA |
| Insert Size | 08 |
| Coating Classification | PVD |
| Width (Mm - 2 Decimals) | 8.00 |
| Length (Mm) | 10.01 |
| Width (Decimal Inch - 4 Decimals) | 0.3150 |
| Length (Decimal Inch - 4 Decimals) | 0.3940 |
| Included Angle Degree | 75 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1570 |
| Coating/Finish | TiCN; TiN |
