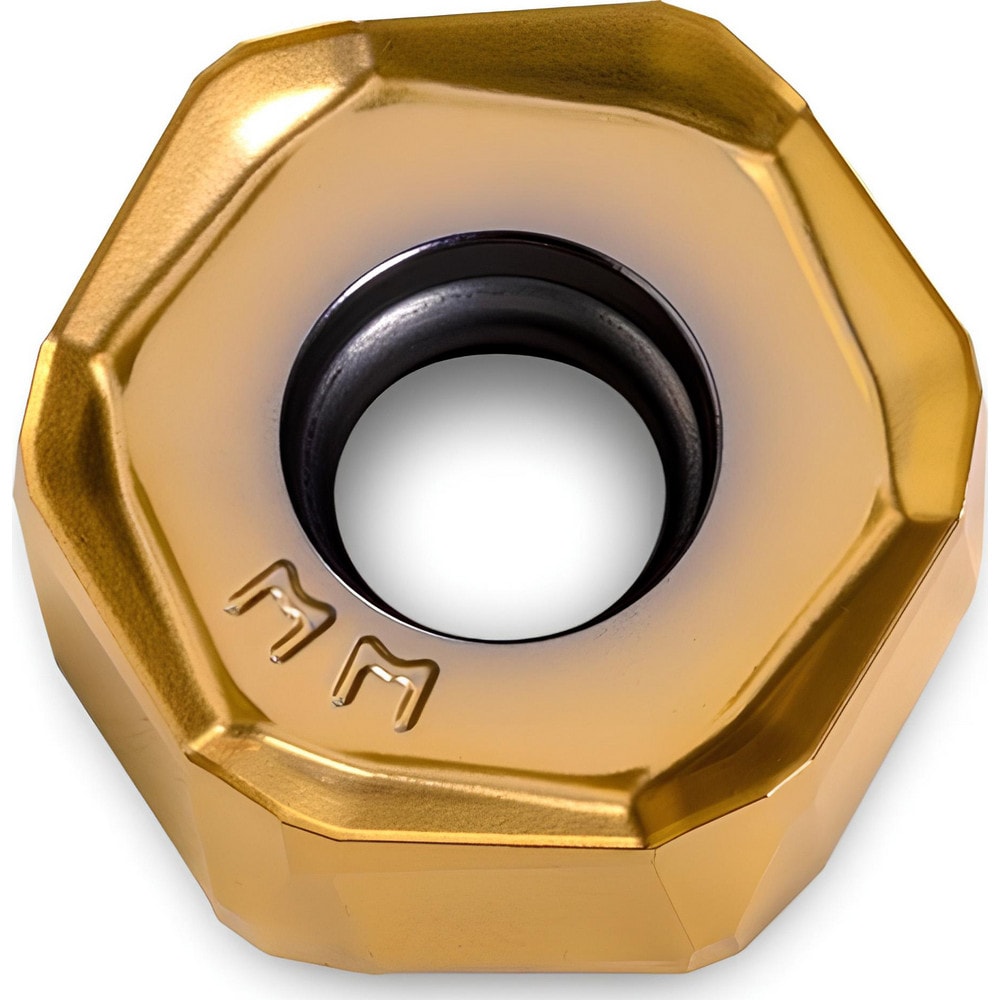

Brand: Ingersoll Cutting Tools / Part #: 6319687

Brand: Ingersoll Cutting Tools / Part #: 6319687


Item #: 67326918
Brand: Ingersoll Cutting Tools
Model #: 6319687

Product Specifications

Insert Style HNGU
Insert Size Code 0605
Insert Material Carbide
Manufacturer Grade IN2510
Inscribed Circle (mm) 14.00
Insert Hand Right Hand
Series HNGU
Coating Process PVD
Maximum Depth of Cut (Decimal Inch) 0.2300
Number Of Cutting Edges 12
Insert Shape Hexagon
Rake Negative
Primary Workpiece Material Cast Iron
Primary Workpiece Material Code K
Ansi Code HNGU0605ANTR-MM
Rake Angle 0.000
Manufacturers Catalog Number HNGU0605ANTR-MM IN2510
Cutter Series Compatibility HN5D
Chip Breaker MM
Cutting Direction Right Hand
Shape Hexagon
Insert Holding Method Screw
Coating Classification PVD
Single or Double Sided Insert Double
Coating/Finish TiN; TiAlN
Included Angle Degree 120
Length 14.00
Width (Mm - 2 Decimals) 14.00
Thickness (Decimal Inch - 4 Decimals) 0.2640
Multi-Use Tool No
$19.35
