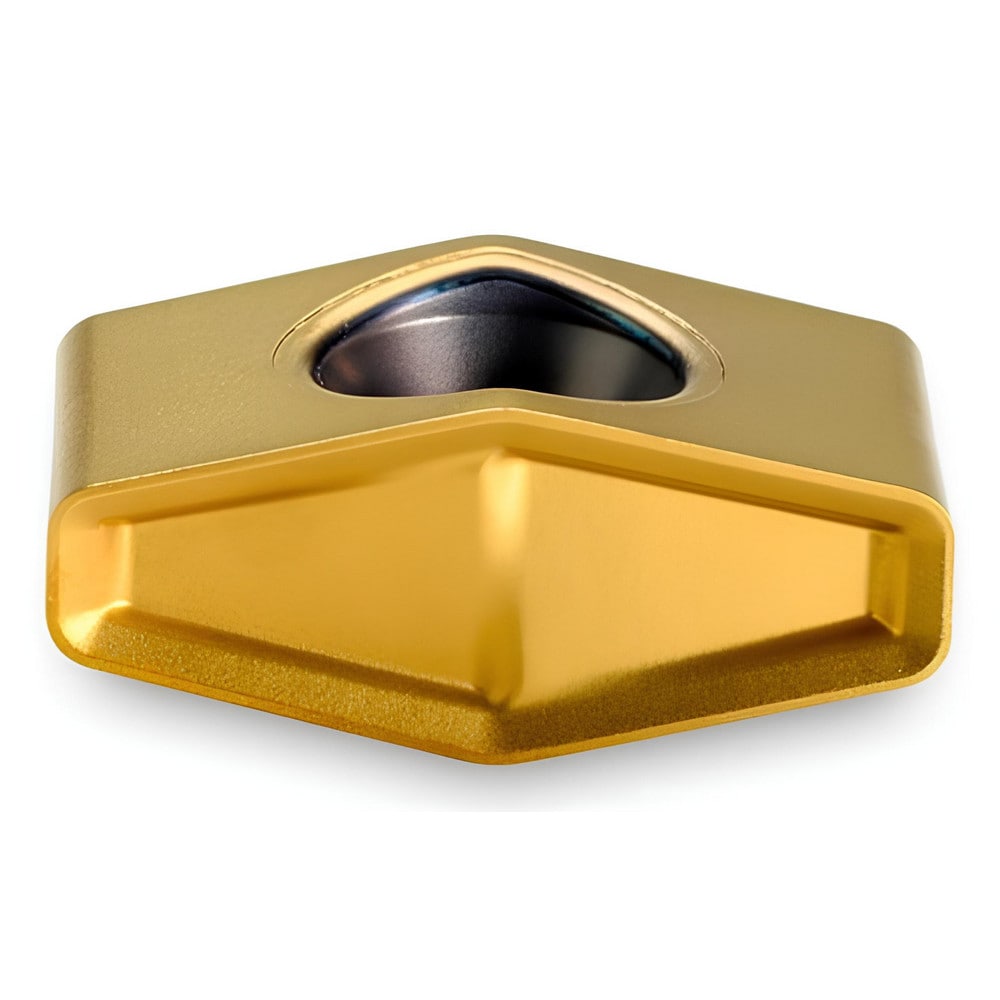

Brand: Ingersoll Cutting Tools / Part #: 2924008
Item #: 67311753
Brand: Ingersoll Cutting Tools
Model #: 2924008
Product Specifications
| Insert Style | LGX |
| Insert Size Code | 324 |
| Insert Material | Carbide |
| Manufacturer Grade | IN4005 |
| Length (Inch) | 39/64 |
| Inscribed Circle (Decimal Inch) | 0.3730 |
| Corner Radius (Decimal Inch) | 0.0400 |
| Insert Hand | Right Hand |
| Series | LGX |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.6100 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Rectangle |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | LGX324R001-M J |
| Rake Angle | 30.000 |
| Manufacturers Catalog Number | LGX324R001-M J IN4005 |
| Cutter Series Compatibility | 8G.A |
| Chip Breaker | M |
| Cutting Direction | Right Hand |
| Shape | Rectangle |
| Length of Cut (mm) | 15.4900 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | AlCrO; TiAlN |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.3730 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2560 |
| Multi-Use Tool | No |
