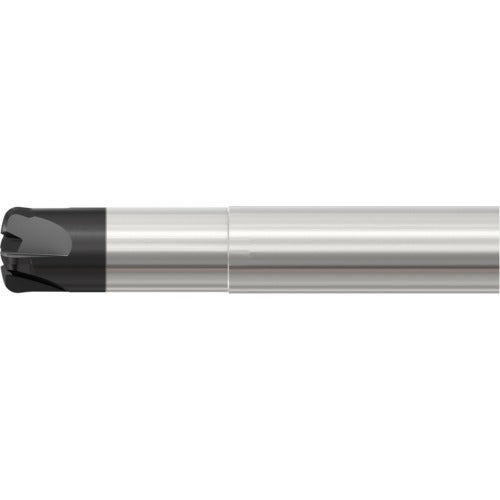

ME-5/8-0.032-1.6-RIFL403 Carbide Solid End Mill
Item #: MC323413279
Brand: Morse Cutting Tools
Model #: 3413279
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Application | High Feed Milling |
| Depth of Cut Maximum (APMX) | 0.032″ |
| Corner Radius (RE) | 0.551″ |
| Overall Length (OAL) | 3-1/2″ |
| Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide |
| Length Group | Long |
| Coating | AlTiN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Decimal Equivalent | 0.625″ |
| Shank Type | Cylindrical |
| Measurement Type | Inch |
| End Shape | Corner Radius |
| Series/List # | RIFL403 |
| Usable Length (LU) | 1-5/8″ |
| Single / Double End | Single End |
