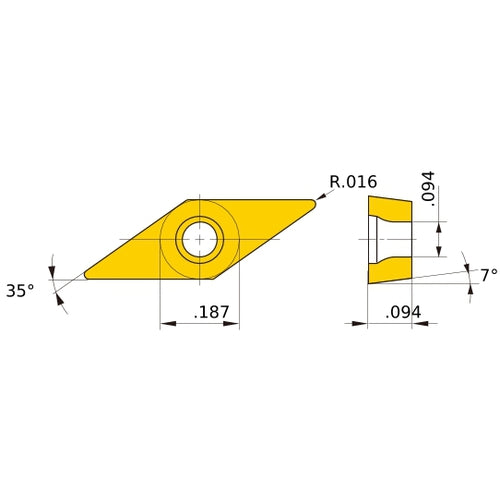

NP-VCGT1.51.51RF MD220
Item #: MB04508103
Brand: Mitsubishi Materials USA
Model #: 508103
| Product Specifications | |
|---|---|
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Fixing Hole Diameter (D1) | 2.4 mm |
| Insert Style | VCGT |
| Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.4 mm |
| Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 2.38 mm |
| Chip Breaker Type | R-F |
| Inscribed Circle Diameter (IC) | 4.76 mm |
| Measurement Type | Metric |
| Insert Included Angle (EPSR) | 35 Degrees |
| Shape | 35° Rhombic |
| Cutting Edge Material | PCD |
| Series/List # | MD220 |
| Grade | MD220 |
| Cutting Edge Effective Length (LE) | 2.5 mm |
