NP-CNMM432RF MD220
Item #: MB04386302
Brand: Mitsubishi Materials USA
Model #: 386302
| Product Specifications | |
|---|---|
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Grade | MD220 |

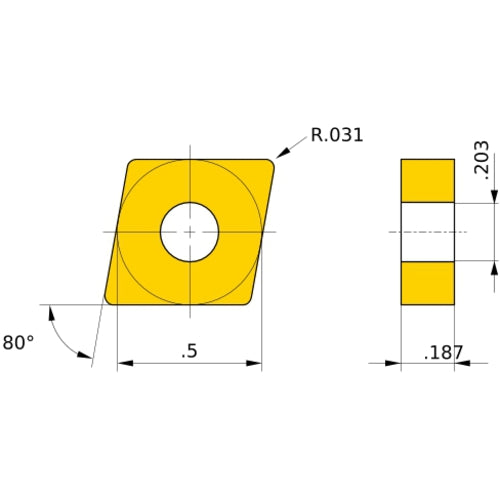

| Insert Style | CNMM |
| Fixing Hole Diameter (D1) | 5.16 mm |
| Corner Radius (RE) | 0.8 mm |
| Cutting Direction (HAND) | Right Hand |
| Insert Size | 432 |
| Chip Breaker Type | R-F |
| Insert Thickness (S) | 4.76 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Shape | 80° Rhombic |
| Insert Included Angle (EPSR) | 80 Degrees |
| Series/List # | MD220 |
| Cutting Edge Material | PCD |
| Cutting Edge Effective Length (LE) | 2.1 mm |
