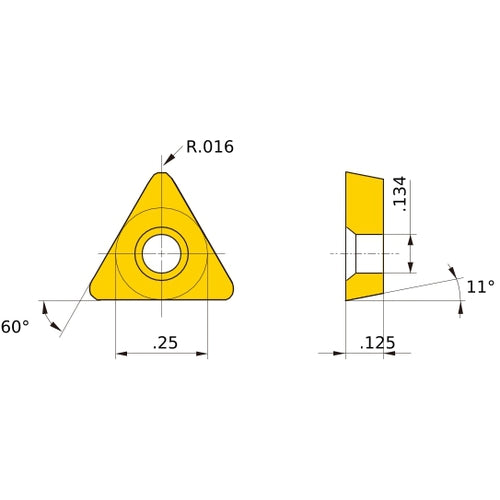

TPMH 221 R-F MD220, 0.4 mm Corner Radius, 3.18 mm Thick, 6.35 mm Inscribed Circle, Turning Indexable Insert
Item #: MB04296665
Brand: Mitsubishi Materials USA
Model #: 296665
| Product Specifications | |
|---|---|
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Tool Type | Turning Insert |
| Application | Finish Cutting |
| Fixing Hole Diameter (D1) | 3.4 mm |
| Insert Style | TPMH |
| Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.4 mm |
| Cutting Direction (HAND) | Right Hand |
| Insert Size | 221 |
| Chip Breaker Type | R-F |
| Insert Thickness (S) | 3.18 mm |
| Quantity | 1 |
| Inscribed Circle Diameter (IC) | 6.35 mm |
| Measurement Type | Metric |
| Insert Included Angle (EPSR) | 60 Degrees |
| Shape | Triangle |
| Cutting Edge Material | PCD |
| Series/List # | MD220 |
| Grade | MD220 |
| Cutting Edge Effective Length (LE) | 1.6 mm |
