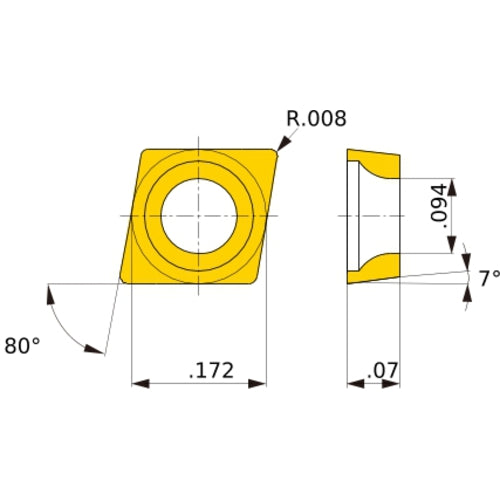

CCMW 04T002 flat_top MD220, 0.2 mm Corner Radius, 1.79 mm Thick, 4.37 mm Inscribed Circle, Turning Indexable Insert
Item #: MB04296286
Brand: Mitsubishi Materials USA
Model #: 296286
| Product Specifications | |
|---|---|
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Tool Type | Turning Insert |
| Application | Finish Cutting |
| Fixing Hole Diameter (D1) | 2.4 mm |
| Insert Style | CCMW |
| Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.2 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 04T002 |
| Chip Breaker Type | flat_top |
| Insert Thickness (S) | 1.79 mm |
| Quantity | 1 |
| Inscribed Circle Diameter (IC) | 4.37 mm |
| Measurement Type | Metric |
| Insert Included Angle (EPSR) | 80 Degrees |
| Shape | 80° Rhombic |
| Cutting Edge Material | PCD |
| Series/List # | MD220 |
| Grade | MD220 |
| Cutting Edge Effective Length (LE) | 1.8 mm |
