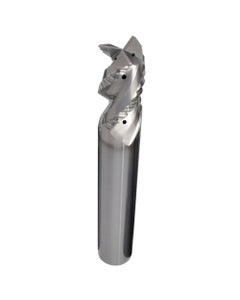

34131 1.0 3FL .120R EM
Item #: DD9434131
Brand: KYOCERA SGS Precision Tools
Model #: 34131
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1″ |
| Neck Diameter (DN) | 0.95″ |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Neck Length (LN) | 3-1/4″ |
| Depth of Cut Maximum (APMX) | 1-3/8″ |
| Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 5-1/4″ |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | TiB2 |
| Body Material | Carbide |
| Flute Count (NOF) | 3 |
| Shank Size (SS) | 1″ |
| Flute Helix Angle (FHA) | 38 Degrees |
| Shank Length (LS) | 5/8″ |
| Shank Type | Round |
| Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Usable Length (LU) | 1-3/8″ |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Single / Double End | Single End |
| Corner Radius (RE) | 0.12″ |
| Center Cutting | Yes |
