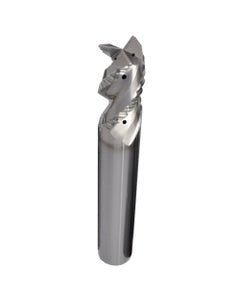

34118 3/4 3FL .090R EM
Item #: DD9434118
Brand: KYOCERA SGS Precision Tools
Model #: 34118
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/4″ |
| Neck Length (LN) | 2-1/2″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Tool Type | Solid Carbide Endmill |
| Depth of Cut Maximum (APMX) | 1-3/8″ |
| Flute Type | Spiral |
| Overall Length (OAL) | 4-3/8″ |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Coating | TiB2 |
| Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 3 |
| Shank Size (SS) | 3/4″ |
| Flute Helix Angle (FHA) | 38 Degrees |
| Shank Length (LS) | 1/2″ |
| Shank Type | Round |
| Corner Radius (RE) / Chamfer Width (CHW) | 0.09″ |
| Usable Length (LU) | 1-3/8″ |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Single / Double End | Single End |
| Corner Radius (RE) | 0.09″ |
| Center Cutting | Yes |
| Neck Diameter (DN) | 0.713″ |
