IMX12C3A140R10011 ET2020 CARB EM
Item #: MB03846612
Brand: Mitsubishi Materials USA
Model #: 846612

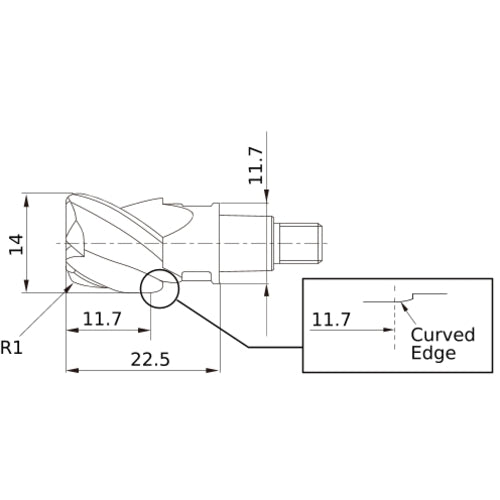

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 14 mm |
| Flute Helix Angle (FHA) | 37.5 Degrees |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Grade | ET2020 |
| Flute Count (NOF) | 3 |
| Measurement Type | Metric |
| Corner Radius (RE) | 1 mm |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 11.7 mm |
| Series/List # | iMX_C3A |
| Connection Diameter Machine Side (DCONMS) | 11.7 mm |
| End Shape | Corner Radius |
| Functional Length (LF) | 22.5 mm |
