IMX12C4FD12012C EP7020 CARB EM
Item #: MB03825336
Brand: Mitsubishi Materials USA
Model #: 825336

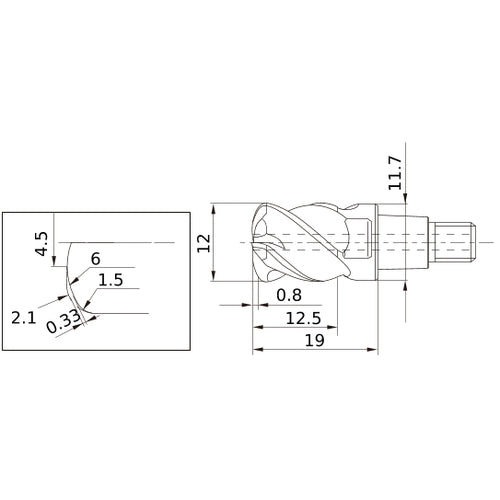

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 12 mm |
| Flute Helix Angle (FHA) | 45 Degrees |
| Applicable Material | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Grade | EP7020 |
| Flute Count (NOF) | 4 |
| Measurement Type | Metric |
| Corner Radius (RE) | 1.5 mm |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.8 mm |
| Series/List # | iMX_C4FD_C |
| Connection Diameter Machine Side (DCONMS) | 11.7 mm |
| End Shape | Corner Radius |
| Functional Length (LF) | 19 mm |
| Ramping Angle Maximum (RMPX) | 2.8 Degrees |
