IMX16R4F16016 EP7020 EM
Item #: MB03806080
Brand: Mitsubishi Materials USA
Model #: 806080

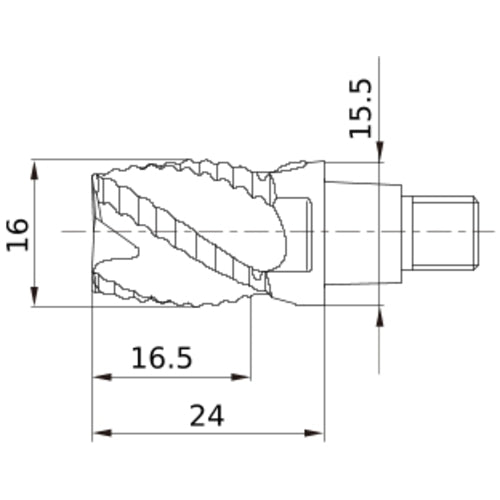

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 16 mm |
| Flute Helix Angle (FHA) | 35 Degrees |
| Applicable Material | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Grade | EP7020 |
| Flute Count (NOF) | 4 |
| Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 16.5 mm |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 15.5 mm |
| Series/List # | iMX_R4F |
| Functional Length (LF) | 24 mm |
| End Shape | Square |
