VQSVRD0700 CARBIDE ENDMILL
Item #: MB03803321
Brand: Mitsubishi Materials USA
Model #: 803321

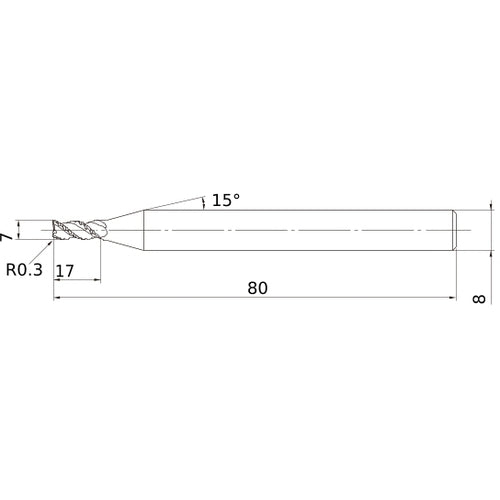

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 7 mm |
| Corner Radius (RE) | 0.3 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Body Half Taper Angle (BHTA) | 15 Degrees |
| Depth of Cut Maximum (APMX) | 17 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 3 |
| Overall Length (OAL) | 80 mm |
| Length Group | Short |
| Coating | VQ |
| Measurement Type | Metric |
| End Shape | Corner Radius |
| Series/List # | VQSVR |
