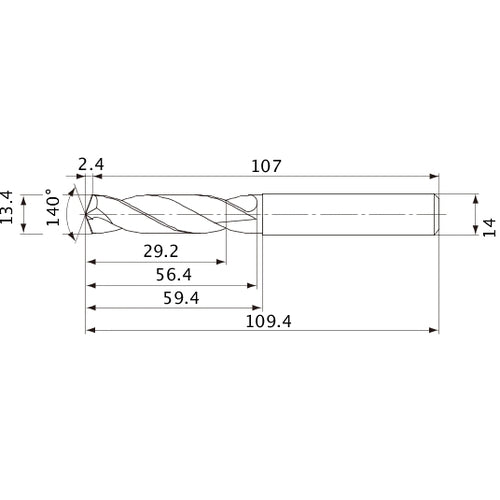

MVE1340X02S140 DP1020 13.4 mm Dia. × 14 mm Shank × 56.4 mm Flute Length × 109.4 mm OAL, 140°, 2 Flute, External Coolant, Solid Carbide Drill
Item #: MB03694583
Brand: Mitsubishi Materials USA
Model #: 694583
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 13.4 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 13.4 mm |
| Cutting Edge Material | Carbide |
| Length Group | 2xD |
| Grade | DP1020 |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 14 mm |
| Series/List # | MVE |
| Head Length (LH) | 59.4 mm |
| Usable Length (LU) | 29.2 mm |
| Coolant Supply Property (CSP) | External |
| Length Chip Flute (LCF) | 56.4 mm |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 109.4 mm |
| Point Length (PL) | 2.4 mm |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 107 mm |
| Feature | New grade DP1020 offers long tool life for a wide range of work materials.,The unique wavy cutting edge provides excellent sharpness and rigidity and helps to control wear at the periphery. |
