IMX10B6HV0375M EP7020 EM
Item #: MB03682970
Brand: Mitsubishi Materials USA
Model #: 682970

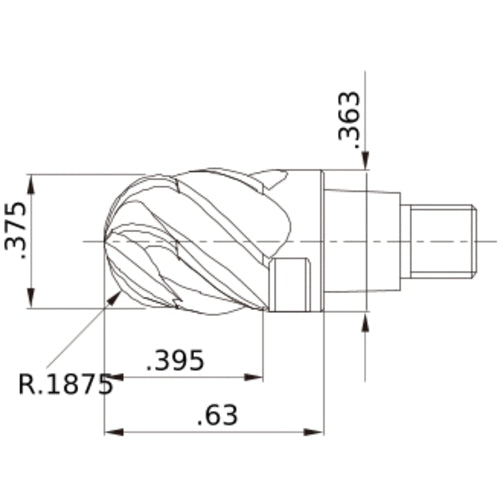

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/8″ |
| Flute Helix Angle (FHA) | 45 Degrees |
| Applicable Material | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Grade | EP7020 |
| Flute Count (NOF) | 6 |
| Measurement Type | Inch |
| Corner Radius (RE) | 3/16″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.395″ |
| Series/List # | iMX_B6HV_INCH |
| Connection Diameter Machine Side (DCONMS) | 0.363″ |
| End Shape | Ball Nose |
| Functional Length (LF) | 0.63″ |
