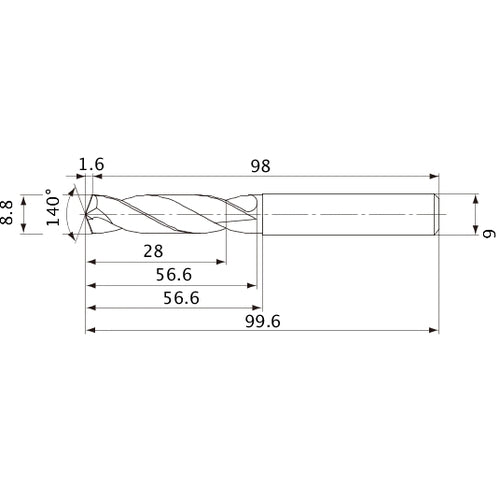

MVE0880X03S090 DP1020 8.8 mm Dia. × 9 mm Shank × 56.6 mm Flute Length × 99.6 mm OAL, 140°, 2 Flute, External Coolant, Solid Carbide Drill
Item #: MB03665740
Brand: Mitsubishi Materials USA
Model #: 665740
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 8.8 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 8.8 mm |
| Cutting Edge Material | Carbide |
| Length Group | 3xD |
| Grade | DP1020 |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 9 mm |
| Series/List # | MVE |
| Head Length (LH) | 56.6 mm |
| Usable Length (LU) | 28 mm |
| Coolant Supply Property (CSP) | External |
| Length Chip Flute (LCF) | 56.6 mm |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 99.6 mm |
| Point Length (PL) | 1.6 mm |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 98 mm |
| Feature | New grade DP1020 offers long tool life for a wide range of work materials.,The unique wavy cutting edge provides excellent sharpness and rigidity and helps to control wear at the periphery. |
