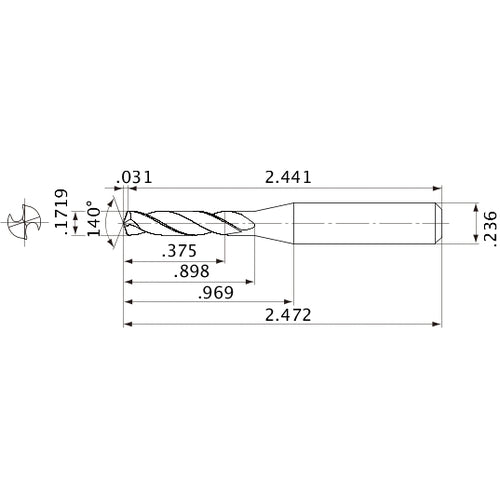

MVE0437X02S060 DP1020 0.1719″ Dia. × 0.236″ Shank × 0.898″ Flute Length × 2.472″ OAL, 140°, 2 Flute, External Coolant, Solid Carbide Drill
Item #: MB03662338
Brand: Mitsubishi Materials USA
Model #: 662338
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 0.1719″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.1719″ |
| Cutting Edge Material | Carbide |
| Length Group | 2xD |
| Grade | DP1020 |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.236″ |
| Series/List # | MVE_INCH |
| Head Length (LH) | 0.969″ |
| Usable Length (LU) | 3/8″ |
| Coolant Supply Property (CSP) | External |
| Length Chip Flute (LCF) | 0.898″ |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 2.472″ |
| Point Length (PL) | 0.031″ |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 2.441″ |
| Feature | New grade DP1020 offers long tool life for a wide range of work materials.,The unique wavy cutting edge provides excellent sharpness and rigidity and helps to control wear at the periphery. |
