E05K-SCLCL2 BAR
Item #: MB0362024693
Brand: Mitsubishi Materials USA
Model #: 62024693

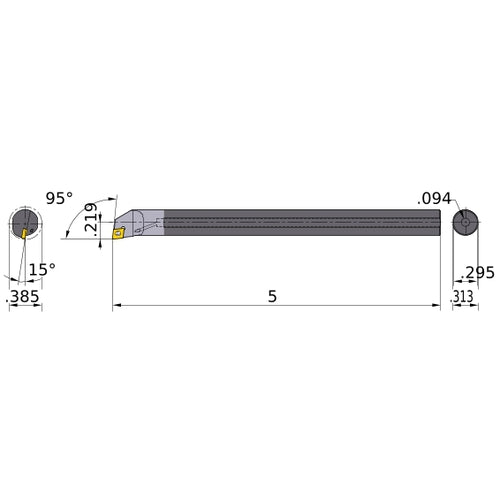

| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 0.313″ |
| Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 5″ |
| Frontal Edge Angle | 95 Degrees |
| Shank Height (H) | 0.295″ |
| Rake Angle Radial (GAMF) | 15 Degrees |
| Functional Width (WF) | 0.219″ |
| Series/List # | E-SCLC_C_INCH |
| Minimum Bore Diameter (DMIN) | 0.385″ |
| Measurement Type | Inch |
