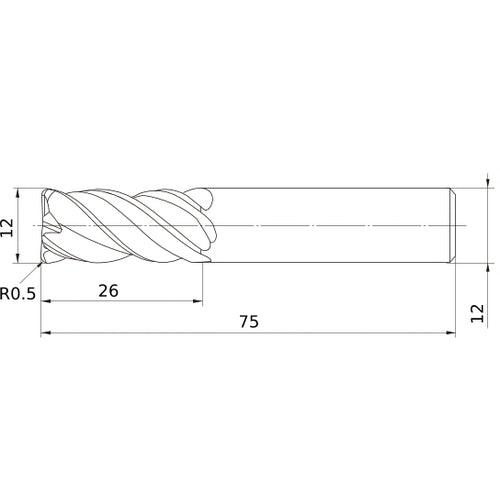

VQMHVRBD1200R050 CARBIDE ENDMILL
Item #: MB03617756
Brand: Mitsubishi Materials USA
Model #: 617756
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 12 mm |
| Corner Radius (RE) | 0.5 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Depth of Cut Maximum (APMX) | 26 mm |
| Length Group | Medium |
| Overall Length (OAL) | 75 mm |
| Measurement Type | Metric |
| Coating | VQ |
| Series/List # | VQMHVRB |
| End Shape | Corner Radius |
