MHS0770L030B CARB DRILL
Item #: MB03478557
Brand: Mitsubishi Materials USA
Model #: 478557

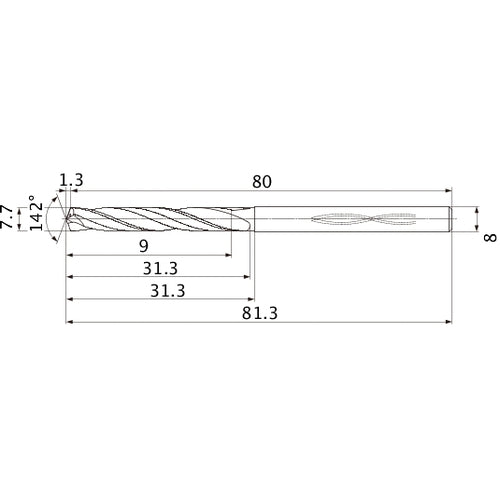

| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 7.7 mm |
| Flute Helix Angle (FHA) | 25 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 7.7 mm |
| Cutting Edge Material | Carbide |
| Length Group | 1xD |
| Grade | VP15TF |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Series/List # | MHS |
| Head Length (LH) | 31.3 mm |
| Usable Length (LU) | 9 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 31.3 mm |
| Point Angle (SIG) | 142 Degrees |
| Overall Length (OAL) | 81.3 mm |
| Point Length (PL) | 1.3 mm |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 80 mm |
