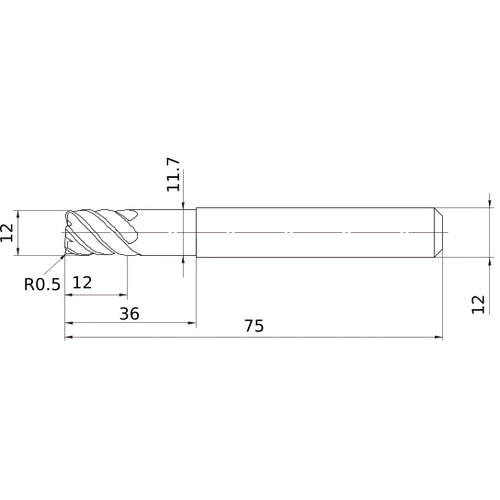

VFSDRBD1200R050 SOLID CARBIDE EM
Item #: MB03476009
Brand: Mitsubishi Materials USA
Model #: 476009
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 12 mm |
| Usable Length (LU) | 36 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Corner Radius (RE) | 0.5 mm |
| Depth of Cut Maximum (APMX) | 12 mm |
| Neck Diameter (DN) | 11.7 mm |
| Overall Length (OAL) | 75 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 6 |
| Coating | VF |
| Tool Type | Solid Carbide Endmill |
| Flute Count (NOF) | 6 |
| Length Group | Short |
| Flute Helix Angle (FHA) | 45 Degrees |
| Measurement Type | Metric |
| End Shape | Corner Radius |
| Series/List # | VFSDRB |
