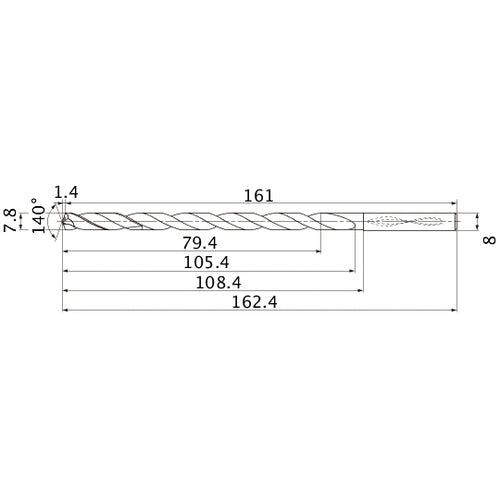

MNS0780X10DB TF15 7.8 mm Dia. × 8 mm Shank × 105.4 mm Flute Length × 162.4 mm OAL, 140°, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: MB03464753
Brand: Mitsubishi Materials USA
Model #: 464753
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 7.8 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 7.8 mm |
| Cutting Edge Material | Carbide |
| Length Group | 10xD |
| Grade | TF15 |
| Applicable Material | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Series/List # | MNS |
| Head Length (LH) | 108.4 mm |
| Usable Length (LU) | 79.4 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 105.4 mm |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 162.4 mm |
| Point Length (PL) | 1.4 mm |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 161 mm |
| Feature | Four coolant holes is ideal for MQL applications |
