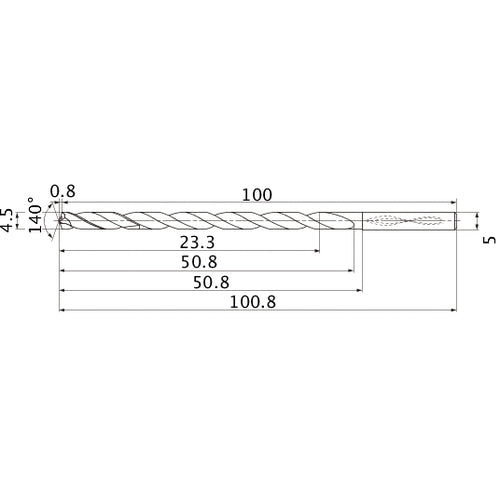

MNS0450LB TF15 4.5 mm Dia. × 5 mm Shank × 50.8 mm Flute Length × 100.8 mm OAL, 140°, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: MB03463312
Brand: Mitsubishi Materials USA
Model #: 463312
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 4.5 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.5 mm |
| Cutting Edge Material | Carbide |
| Length Group | 5xD |
| Grade | TF15 |
| Applicable Material | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 5 mm |
| Series/List # | MNS |
| Head Length (LH) | 50.8 mm |
| Usable Length (LU) | 23.3 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 50.8 mm |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 100.8 mm |
| Point Length (PL) | 0.8 mm |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 100 mm |
| Feature | Four coolant holes is ideal for MQL applications |
