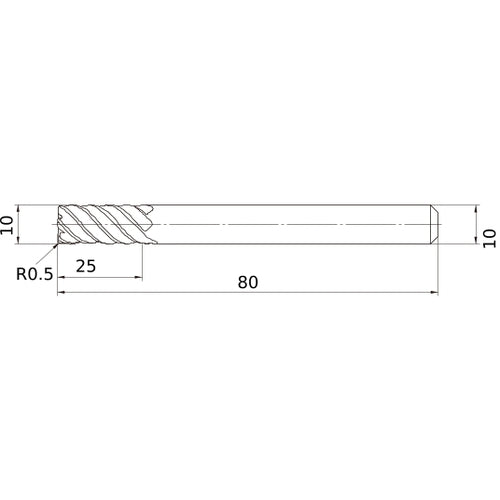

VFMDRBD1000R050 SOLID CARBIDE EM
Item #: MB03453261
Brand: Mitsubishi Materials USA
Model #: 453261
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 10 mm |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Corner Radius (RE) | 0.5 mm |
| Depth of Cut Maximum (APMX) | 25 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 6 |
| Overall Length (OAL) | 80 mm |
| Length Group | Medium |
| Coating | VF |
| Measurement Type | Metric |
| Flute Count (NOF) | 6 |
| Series/List # | VFMDRB |
| Flute Helix Angle (FHA) | 45 Degrees |
