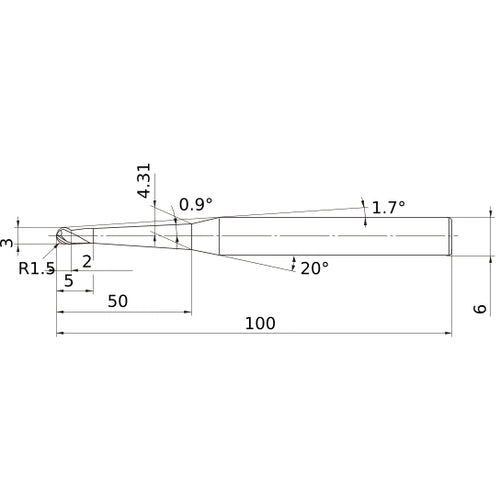

3 mm Dia. × 6 mm Shank × 2 mm DOC × 100 mm OAL, Carbide 3 Flute, 30° Helix, Ballnose End Mill VF3XBR0150T0054L050
Item #: MB03451371
Brand: Mitsubishi Materials USA
Model #: 451371
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3 mm |
| Corner Radius (RE) | 1.5 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Neck Diameter (DN) | 4.31 mm |
| Depth of Cut Maximum (APMX) | 2 mm |
| Body Half Taper Angle (BHTA) | 0.9 Degrees |
| Overall Length (OAL) | 100 mm |
| Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide |
| Length Group | Taper Neck |
| Coating | VF |
| End Shape | Ball Nose |
| Flute Count (NOF) | 3 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | VF3XB |
| Usable Length (LU) | 5 mm |
