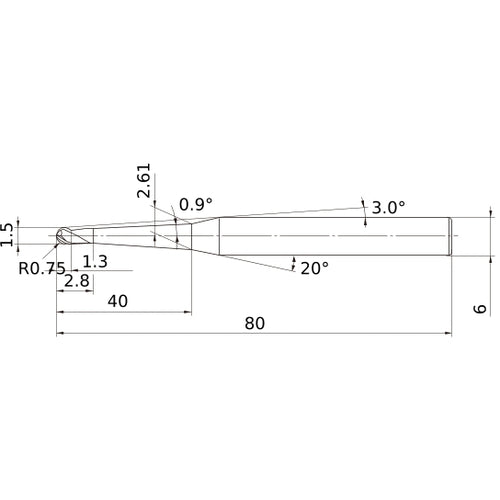

1.5 mm Dia. × 6 mm Shank × 1.3 mm DOC × 80 mm OAL, Carbide 3 Flute, 30° Helix, Ballnose End Mill VF3XBR0075T0054L040
Item #: MB03451012
Brand: Mitsubishi Materials USA
Model #: 451012
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1.5 mm |
| Corner Radius (RE) | 0.75 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Neck Diameter (DN) | 2.61 mm |
| Depth of Cut Maximum (APMX) | 1.3 mm |
| Body Half Taper Angle (BHTA) | 0.9 Degrees |
| Overall Length (OAL) | 80 mm |
| Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide |
| Length Group | Taper Neck |
| Coating | VF |
| End Shape | Ball Nose |
| Flute Count (NOF) | 3 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | VF3XB |
| Usable Length (LU) | 2.8 mm |
