AJX09R404SA42S INDX EM
Item #: MB03434028
Brand: Mitsubishi Materials USA
Model #: 434028

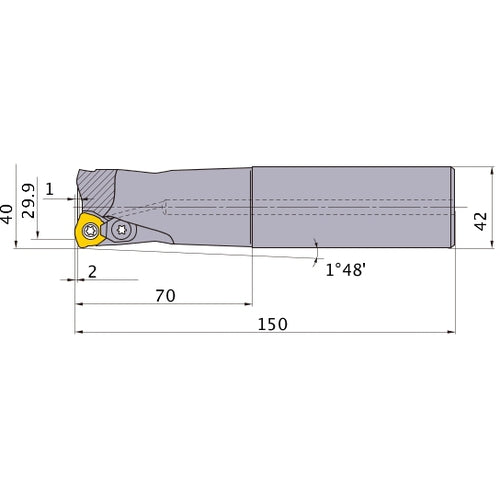

| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 29.9 mm |
| Head Length (LH) | 70 mm |
| Cutting Diameter (DC) | 29.9 mm |
| Functional Length (LF) | 150 mm |
| Cutting Diameter Maximum (DCX) | 40 mm |
| Flute Count (NOF) | 4 |
| Cutting Item Count (CICT) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 2 mm |
| Series/List # | AJX |
| Ramping Angle Maximum (RMPX) | 1.5 Degrees |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 42 mm |
