VF2XLBR0300N400S06 SOLID CARB EM
Item #: MB03424794
Brand: Mitsubishi Materials USA
Model #: 424794

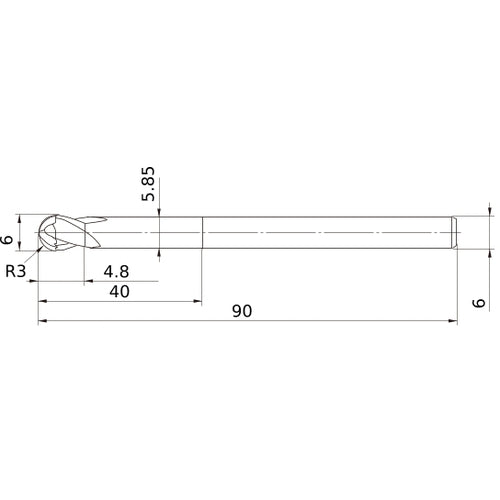

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 6 mm |
| Usable Length (LU) | 40 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Corner Radius (RE) | 3 mm |
| Depth of Cut Maximum (APMX) | 4.8 mm |
| Neck Diameter (DN) | 5.85 mm |
| Overall Length (OAL) | 90 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 2 |
| Coating | VF |
| Length Group | Long - Necked |
| Flute Count (NOF) | 2 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | VF2XLB |
| End Shape | Ball |
